NSO evo3S | Quick Guide - EN

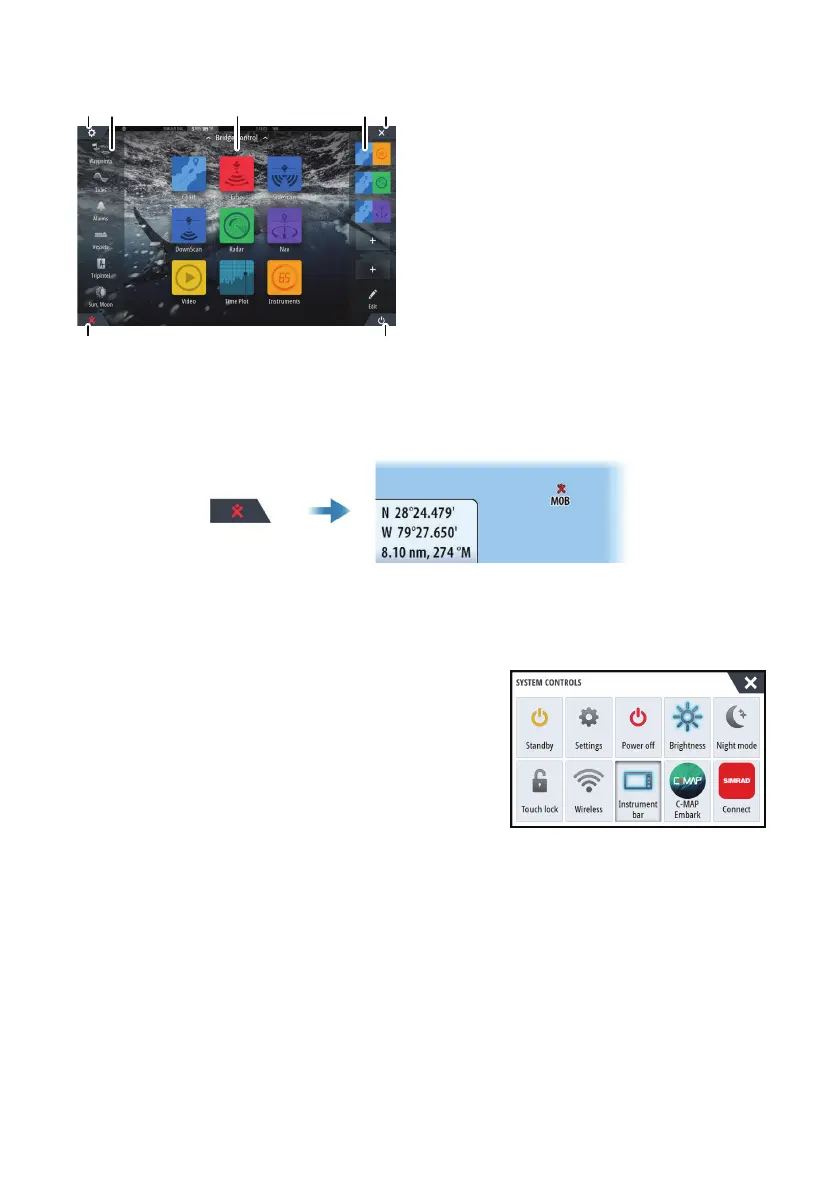

Home page
AB C D E
GF
A Application buttons
B Settings button
C Tools
D Favorites
E Close button
F Man Over Board (MOB)
button
G Power button
The MOB mark
To create a MOB mark: press the MOB button.
To stop displaying navigational information to the MOB waypoint: cancel the navigation
from the menu.
System Controls dialog
Used for quick access to system settings.
Activate the dialog by:
• Pressing the Power key
• Swiping from the top of the screen
¼ Note: The content of the System Controls dialog
depends on connected equipment and active
panel.

Simrad NSO evo3S Specifications

General

Display Size	16 inches
Touchscreen	Yes
Power Supply	12/24 V DC
Waterproof Rating	IPX6
Processor	iMX8
RAM	4 GB
Connectivity	Ethernet, NMEA 2000
Operating System	Linux
Mounting	Flush or bracket mount
