－17－
INSTALLATION GUIDE FOR CASTOR, DRAINAGE PIPE AND AIR EXHAUST ACCESSORY
THE AIR EXHAUST
DUCT MOUNTING
METHOD
1.Install the adjutable window silder kit or drill a hole at the
nearest window.

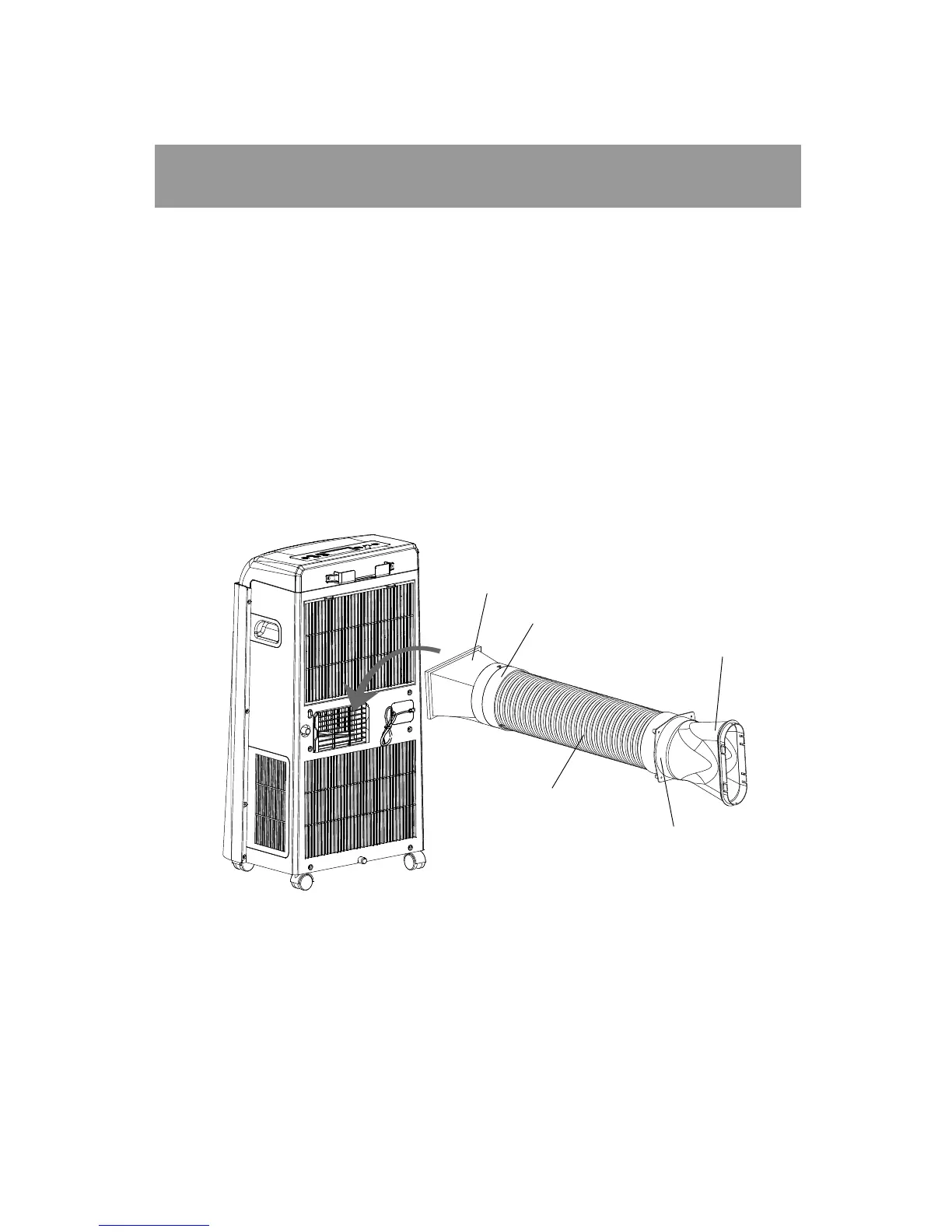

2.Fix the square end of the exhaust duct to the exhaust terminal
of the unit as depicted in Fig 4.
3.Put the other end (discharge) to the window as depicted in
Fig 5 or Fig 6.
Attention:
The length of the air exhaust must be between 500mm--
2000mm.
Plastic Pipe End
Middle Plastic Pipe End
Rear Clip B
Fig 4
Front Plastic Pipe End
Pipe ( 131)
Ø
To Next Page
