L
€28275

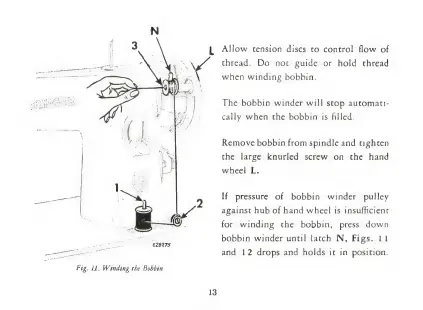

Fig. 11. Winding the Bobbin
13
Allow tension discs to control flow of
thread. Do not guide or hold thread
when winding bobbin.
The bobbin winder will stop automati-
cally when the bobbin is filled.
Remove bobbin from spindle and ughten
the large knurled screw on the hand
wheel L.
If pressure of bobbin winder pulley
against hub of hand wheel is insufficient
for winding the bobbin, press down
bobbin winder until latch N, Figs. 11
and 12 drops and holds it in position.
