Singer 201P - Bobbin Case Handling; Replacing and Threading Bobbin Case

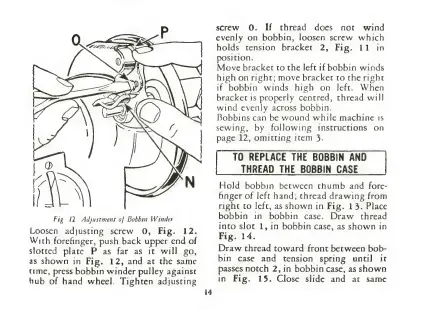

Fig 12 Adjustment of Bobbin Winder
Loosen adjusting screw 0, Fig. 12.
With forefinger, push back upper end of
slotted plate P as far as it will go,
as shown in Fig. 12, and at the same
time, press bobbin winder pulley against
hub of hand wheel. Tighten adjusting
screw 0. If thread does not wind
evenly on bobbin, loosen screw which
holds tension bracket 2, Fig. 11 in
position.
Move bracket to the left if bobbin winds
high on right; move bracket to the right
if bobbin winds high on left. When
bracket is properly centred, thread will
wind evenly across bobbin.
Bobbins can be wound while machine 1s
sewing, by following instructions on
page 12, omitting item 3.
TO REPLACE THE BOBBIN AND
THREAD THE BOBBIN CASE
Hold bobbin between thumb and fore-
finger of left hand; thread drawing from
right to left, as shown in Fig. 13. Place
bobbin in bobbin case. Draw thread
into slot 1, in bobbin case, as shown in
Fig. 14.
Draw thread toward front between bob-
bin case and tension spring until] it
passes notch 2, in bobbin case, as shown
in Fig. 15. Close slide and at same
