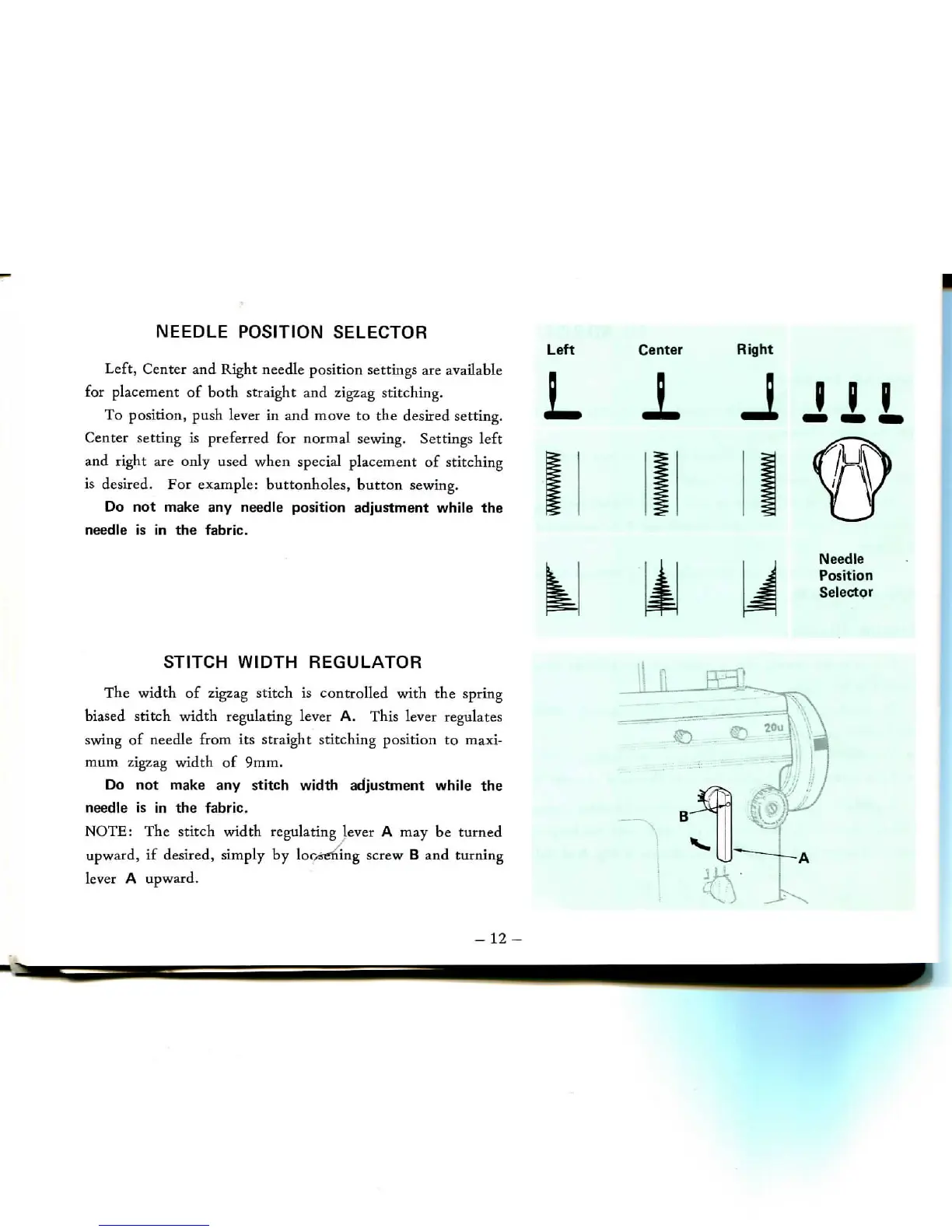

NEEDLE
POSITION SELECTOR
Left,
Center
and
Right needle position settings
are
available
for
placement
of
both straight
and
zigzag stitching.
To
position,
push
lever
in and
move
to the
desired setting.
Center
setting
is
preferred
for
normal sewing. Settings left
and
right
are
only used when special placement
of
stitching
is
desired.
For
example: buttonholes, button sewing.
Do not
make
any
needle
position adjustment while
the
needle
is in the
fabric.
Left
Center
Right
L
±
JILL
Needle
Position
Selector
STITCH
WIDTH REGULATOR
The
width
of
zigzag
stitch
is
controlled with
the
spring
biased stitch width regulating lever
A.
This
lever
regulates
swing
of
needle
from
its
straight stitching position
to
maxi-
mum
zigzag
width
of
9mm.
Do
not
make
any
stitch
width
adjustment while
the
needle
is in the
fabric.
NOTE:
The
stitch
width regulating lever
A may be
turned
upward,
if
desired, simply
by
loosening
screw
B and
turning
lever
A
upward.
-12-
