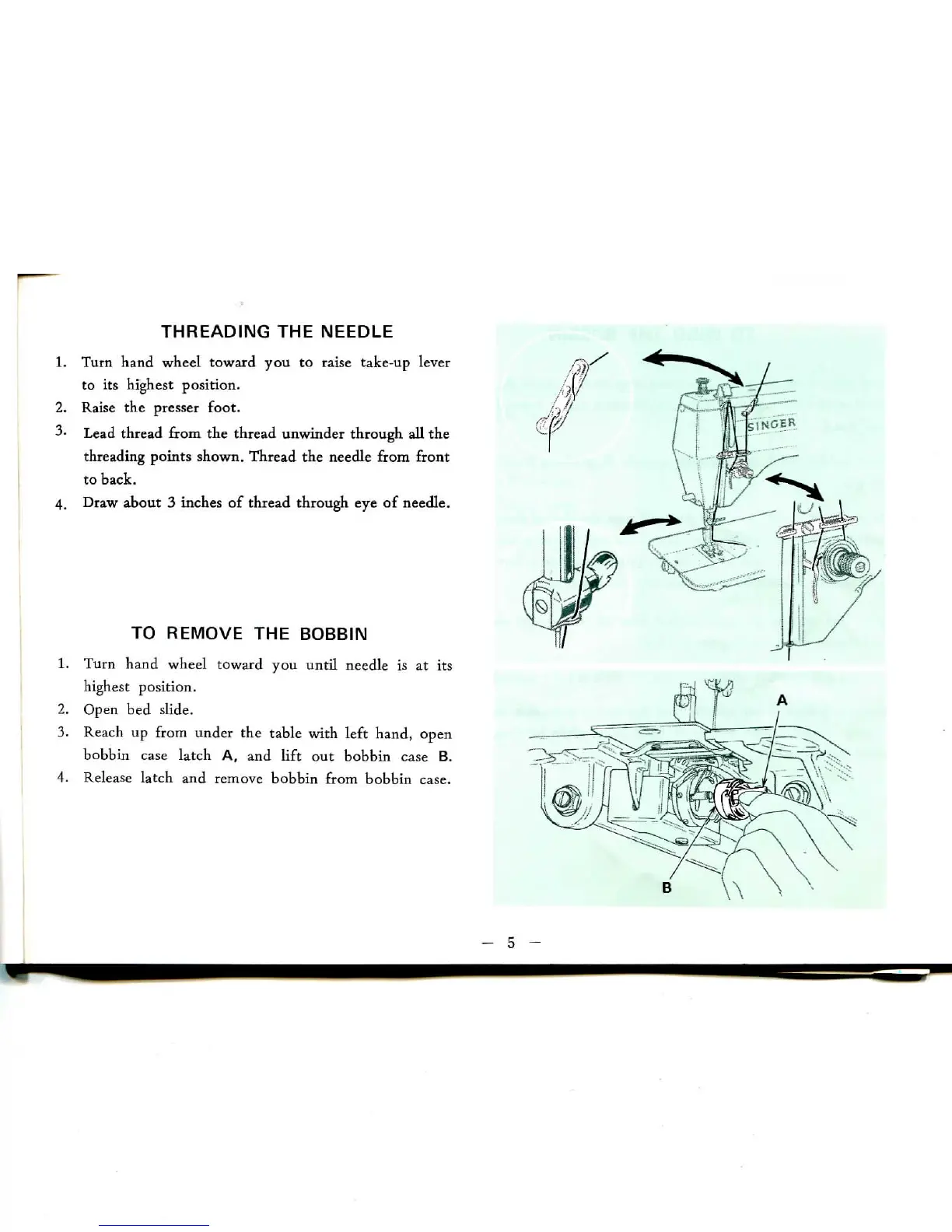

THREADING
THE
NEEDLE
1.
Turn hand wheel toward
you to
raise take-up lever
to
its
highest position.
2.
Raise
the
presser
foot.
3-
Lead thread from
the
thread
unwinder
through
all the
threading
points
shown.
Thread
the
needle from front
to
back.
4.
Draw
about
3
inches
of
thread
through
eye of
needle.
TO
REMOVE
THE
BOBBIN
1.
Turn hand wheel toward
you
until
needle
is at its
highest
position.
2.
Open
bed
slide.
3.
Reach
up
from
under
the
table
with
left hand, open
bobbin case latch
A, and
lift
out
bobbin case
B.
4.
Release latch
and
remove bobbin from bobbin case.
B
\
5 -
