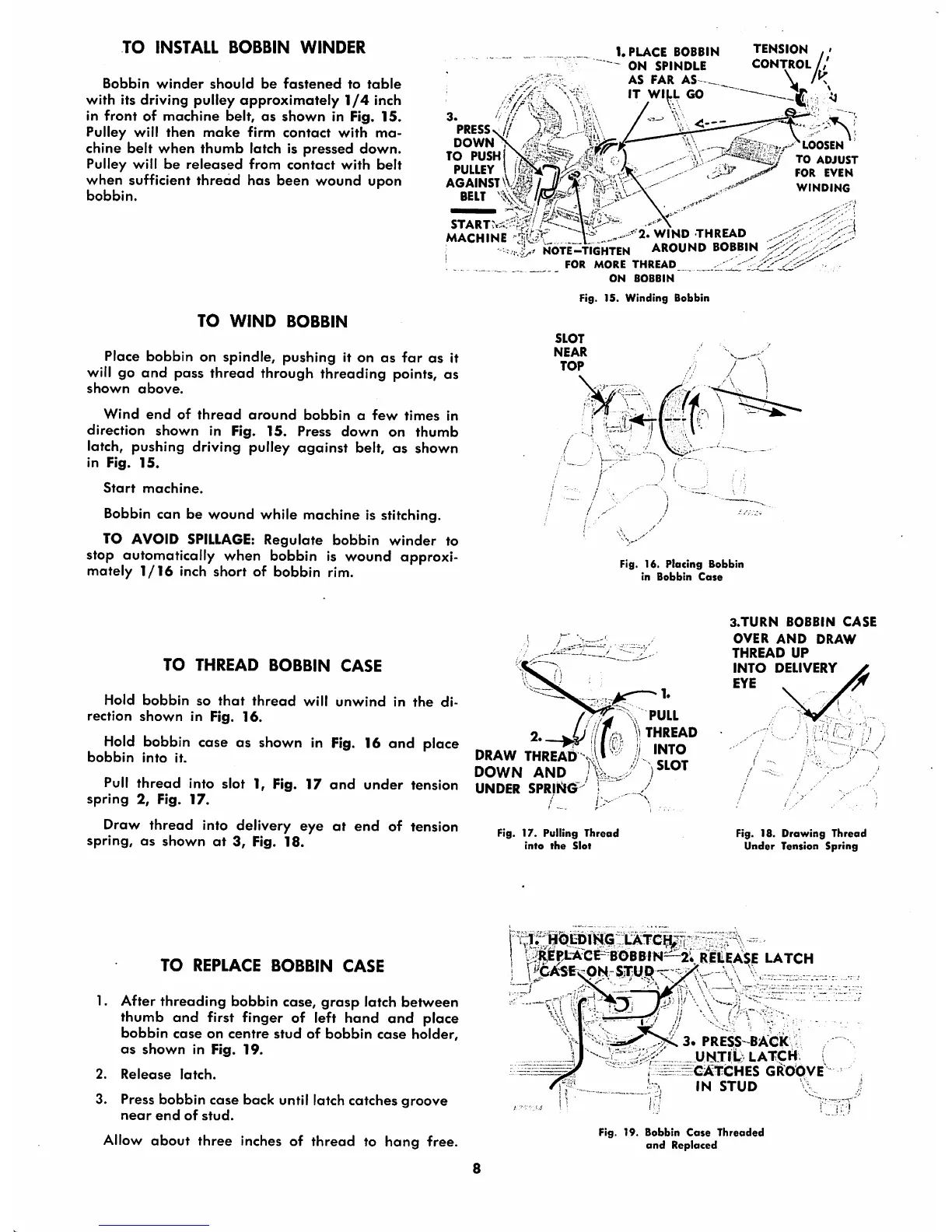

TO
INSTALL
BOBBIN
WINDER
Bobbin
winder
should
be
fastened
to
table
with its driving pulley
approximately
1/4
inch
in
front
of
machine
belt,
as
shown
in Fig.
15.
Pulley will
then
make
firm
contact
with
ma
chine belt when
thumb
latch is pressed down.
Pulley will
be
released
from
contact
with
belt
when sufficient
thread
has
been
wound upon
bobbin.
3.
•/
/
PRESS
v//
DOWN
TO
push!
PULLEY
I hm
AGAINST
'fwy
——
-ri?'/
^4^
START^a4-A''''
1.
PLACE
BOBBIN
~
ON
SPINDLE
AS
FAR
AS
_
IT
WI|.L
GO
TENSION
CONTROL
-
LOOSEN
TO
ADJUST
FOR
EVEN
WINDING
MACHINE
...
-
2.
WIND
THREAD
NOTE-TIGHTEN
AROUND
BOBBIN
FOR MORE THREAD
ON
BOBBIN
Fig. 15.
Winding
Bobbin
TO
WIND
BOBBIN
Place bobbin on spindle, pushing it on as
far
as
it
will go
and
pass thread through threading points, as
shown
above.
Wind
end
of
thread
around
bobbin
a
few
times
in
direction
shown
in Fig. 15. Press
down
on
thumb
latch, pushing driving pulley
against
belt, as shown
in
Fig.
15.
Start
machine.
Bobbin can be wound while machine is stitching.
TO AVOID
SPILLAGE:
Regulate
bobbin
winder
to
stop automatically when bobbin is wound approxi
mately
1/16
inch
short
of
bobbin
rim.
TO
THREAD
BOBBIN
CASE
Hold
bobbin
so
that
thread
will
unwind
in
the
di
rection
shown
in Fig.
16.
Hold
bobbin cose as shown in
Fig.
16 and place
bobbin
into
it.
SLOT
NEAR
TOP
DRAW
THREAD
DOWN
AND
Fig. 16.
Placing
Bobbin
In
Bobbin
Cose
THREAD
INTO
SLOT
3.TURN
BOBBIN
CASE
OVER
AND
DRAW
THREAD
UP
INTO
DELIVERY
^
EYE
^
Pull
thread into slot 1,
Fig.
17 and under
tension
UNDER
SPRING
spring
2,
Fig.
17
Draw
thread
into delivery eye
at
end
of tension
spring,
as
shown
at
3,
Fig.
18.
TO
REPLACE
BOBBIN
CASE
1. After threading bobbin cose,
grasp
latch between
thumb
and
first finger of left
hand
and
place
bobbin
case
on
centre
stud
of
bobbin
case
holder,
as
shown
in Fig.
19.
2.
Release
latch.
3. Press
bobbin
case
back
until latch
catches
groove
near
end
of
stud.
Allow
about
three inches of
thread
to
hong
free.
Fig. 17. Pulling
Thread
into
the
Slot
Fig. 18.
Drawing
Thread
Under
Tension
Spring
1.,1.
HOLDING
LATC^"
! h^EPtACr B0BBIN^2i
i^ilEASE
LATCH
I'CASEsON
STUJ^
3.
PRESS-BACK
UNTIL
LATCH
CATCHES GI^OOVE
IN
STUD
Fig. 19.
Bobbin
Case
Threaded
and
Replaced
