17. Electronic component area -- continued --

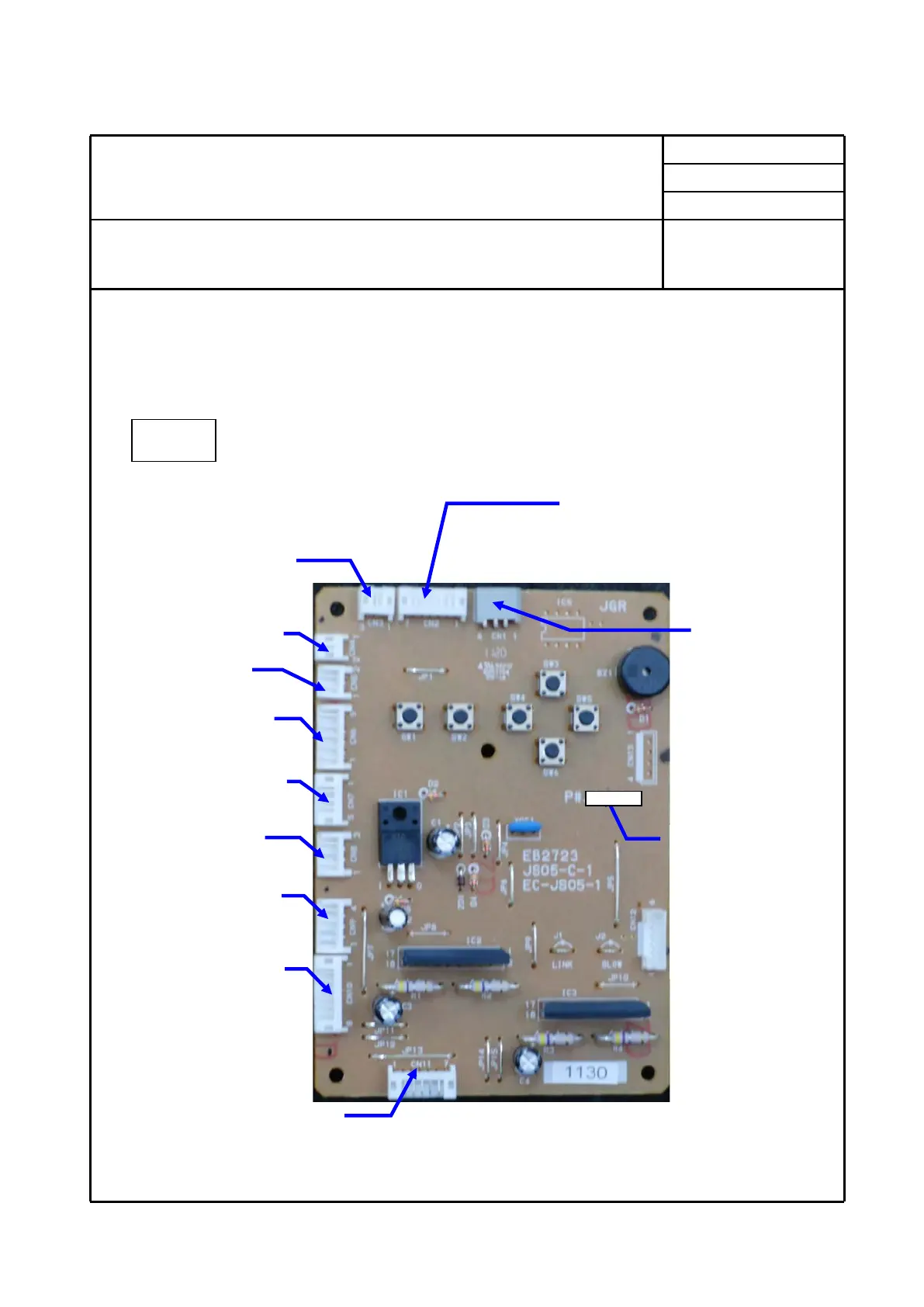

CPU board and SW board are unitized and located on control panel in this model.
Be sure to check number printed on board.
84084
CN4
CN5
CN6
CN7
CN8
CN9
CN10
84084
Motor for needle swing
Motor for material feeding
5P connector cable
Connected with AC
bd
Cam sensor harness
Bobbin winding switch
Buttonhole stitch SW
not used
Foot control
LCD Unit
Speed control switch
Start/atop switch, reverse stitch
switch and ndl. position switch
J1 J2
