T

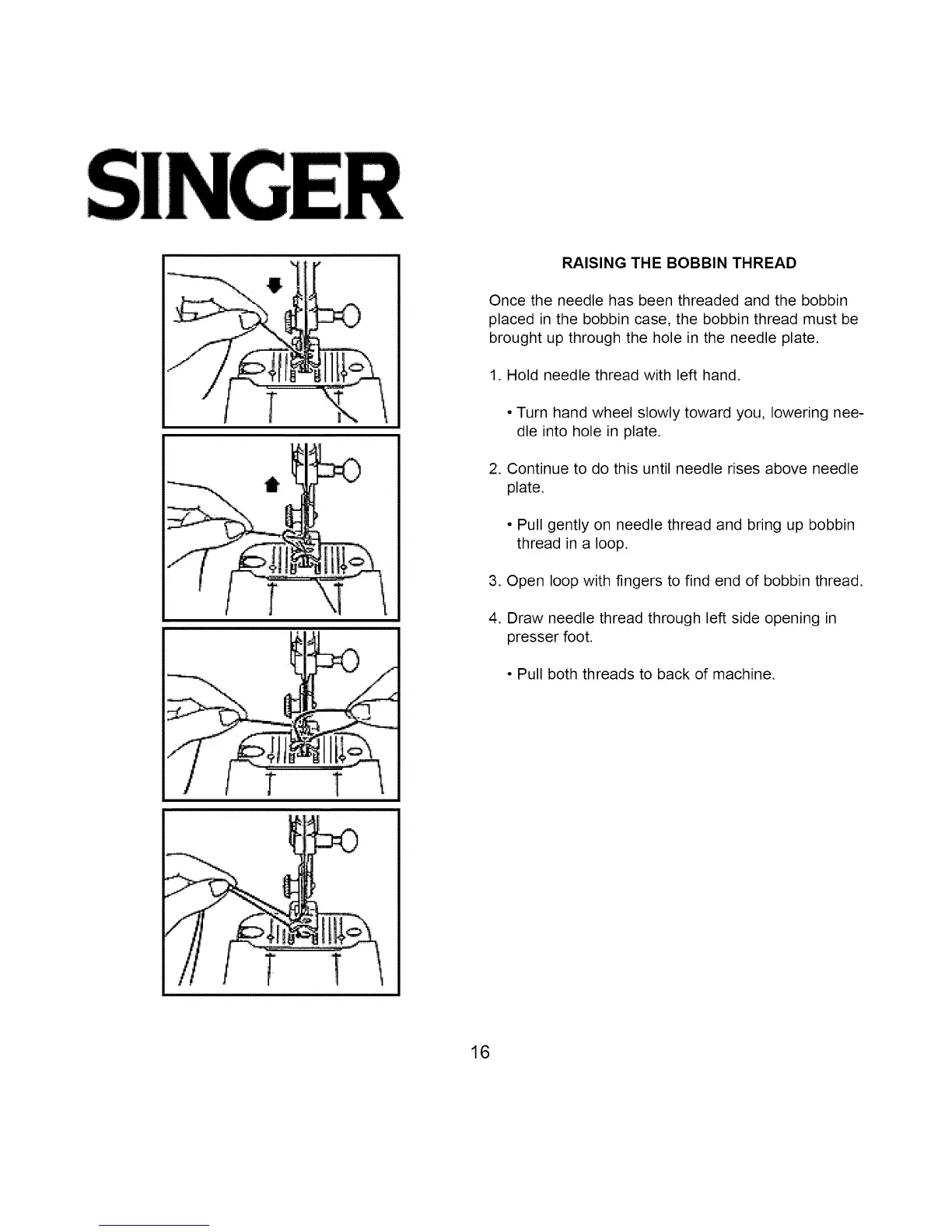

RAISING THE BOBBIN THREAD
Once the needle has been threaded and the bobbin
placed in the bobbin case, the bobbin thread must be
brought up through the hole in the needle plate.
1. Hold needle thread with left hand.
Turn hand wheel slowly toward you, lowering nee-
dle into hole in plate.
2. Continue to do this until needle rises above needle
plate.
Pull gently on needle thread and bring up bobbin
thread in a loop.
3. Open loop with fingers to find end of bobbin thread.
4. Draw needle thread through left side opening in
presser foot.
Pull both threads to back of machine.
16
