Singer 9920 - Front Enclosure

SERVICE MANUAL
7

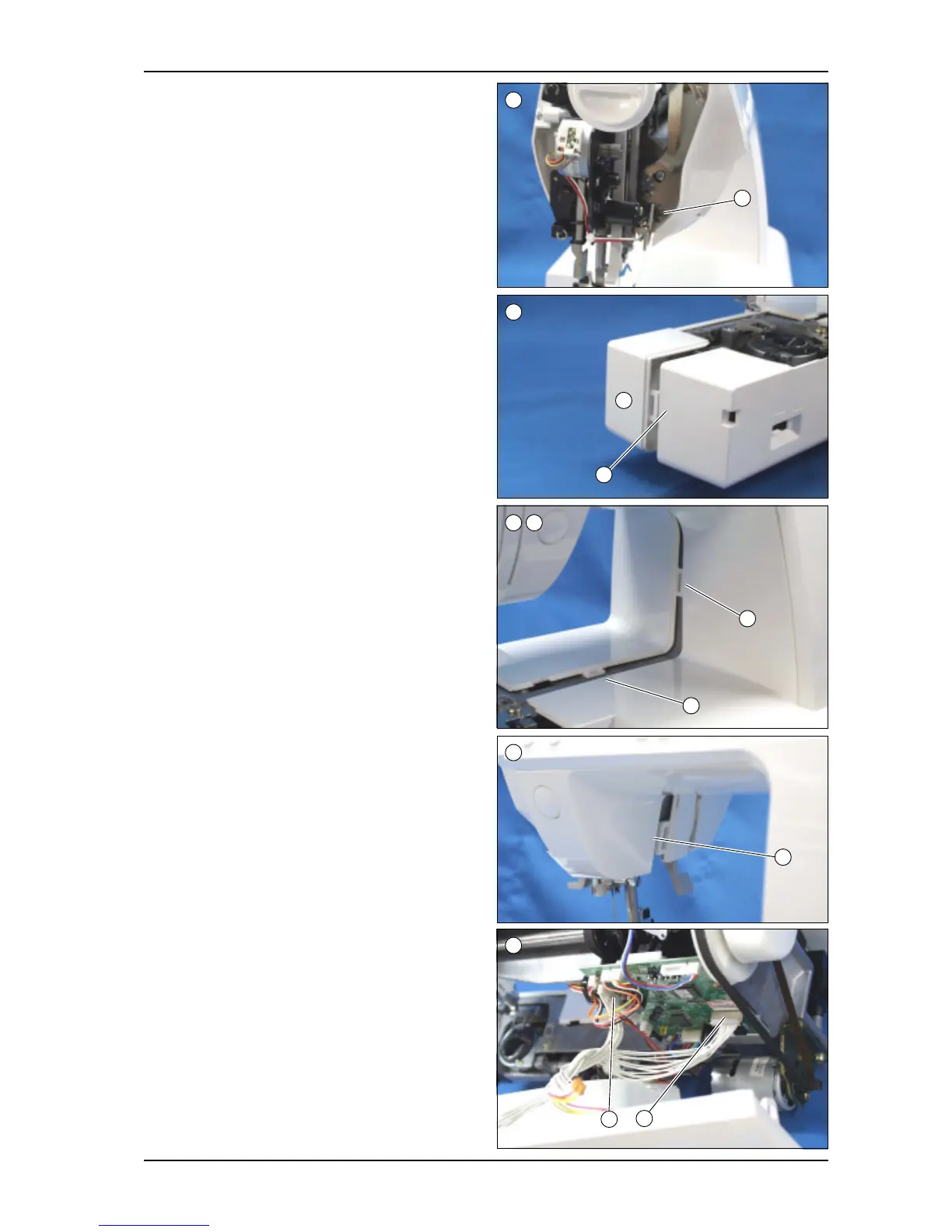

I. Front Enclosure
1. Loosen the screw (a).
2. Push the left side of rear enclosure (b) and pull the
front enclosure (hook-c will come off).
3. Pull up the front enclosure and come off the hook-d.
4. Pull the enclosure to the left and come off the hook-e.
5. Push the rear enclosure to the left and come off the
hook-f.
6. Disconnect the 2 connectors (g, h) from the machine
and remove the front enclosure.
1
2
a
b
c
3 4
d
e
5
f
6
g
h
