TO
REMOVE
THE
BOBBIN
CASE
CAP
First, turn the machine pulley toward the
operator
until the needle is at its highest point. After the bed
slide has been opened reach under the table, open the
bobbin case latch Fig. 6
and
remove the bobbin
case cap from the hook by means of this latch. While
the latch remains open, the bobbin will be retained in
the bobbin case cap.
TO
WIND
THE
BOBBIN
Fasten the bobbin winder to the
table
with its driving
pulley in front of the machine belt so
that
the pulley
will
be
released
when
sufficient
thread
has
been
wound
upon the bobbin.
Place the bobbin on the bobbin winder spindle
and
push it on as far as it will go.
Next pass the
thread
through the
thread
guide
in
the
tension bracket
"G",
Fig.7
and
around the tension discs
to
the
bobbin.
Then
wind
the
end
of
the
thread
around
the bobbin a few times
and
push the bobbin winder
pulley
against
the machine belt
and
start
the machine.
When sufficient thread has been wound upon the
bob
bin, the bobbin winder
will
stop automatically. If the
thread does not wind evenly on the bobbin, loosen the
screw "H", Fig. 7
at
the tension bracket
and
move
same
to the right or left as required. Then retighten the screw
"H",
Fig. 7.
The amount of thread wound on the bobbin is regu
lated by the screw
"J",
Fig. 7. To wind more thread on
the bobbin, turn the screw to the right; for less thread
turn
the
screw
to
the
left.
Bobbins
can be wound whilethe machine is stitching.
0

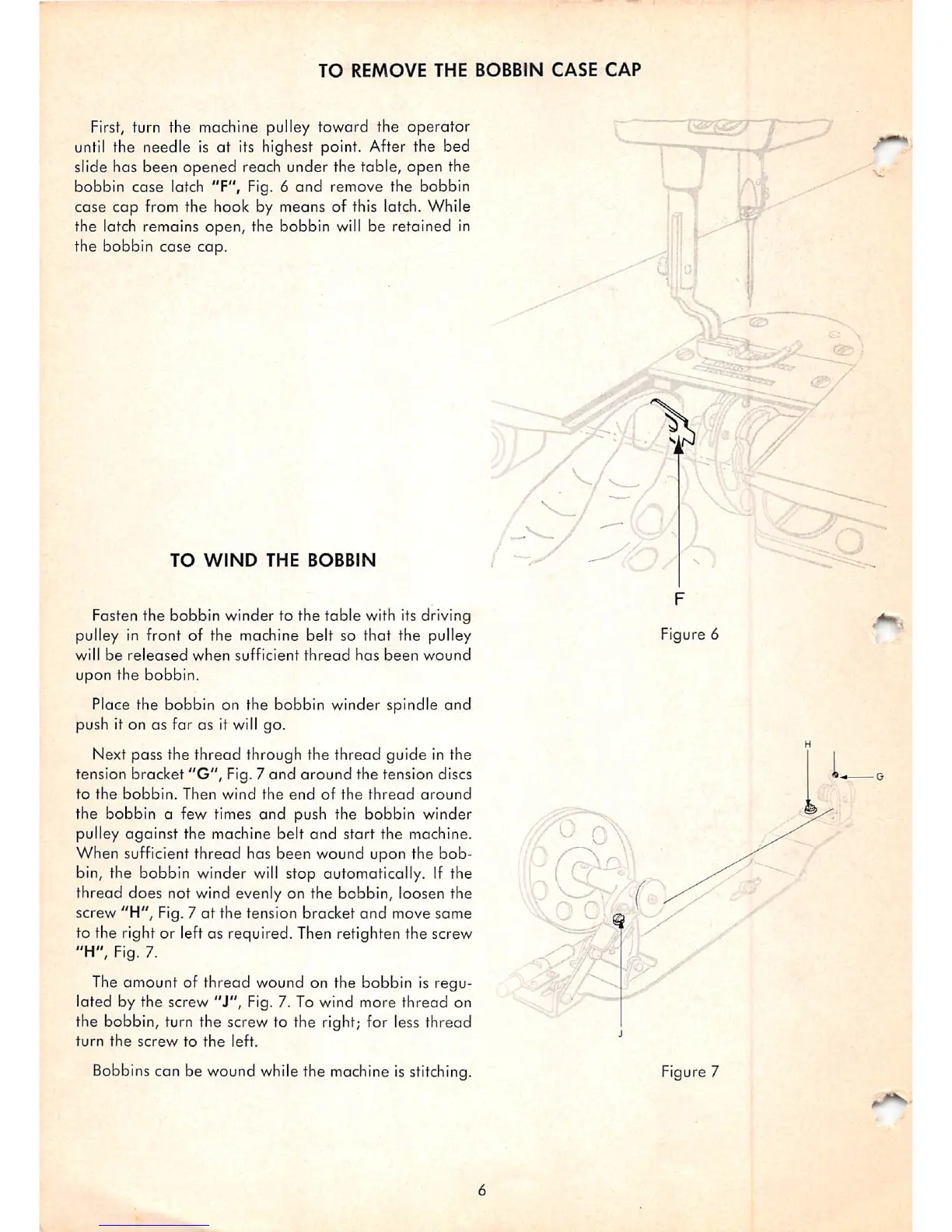

Figure 6
