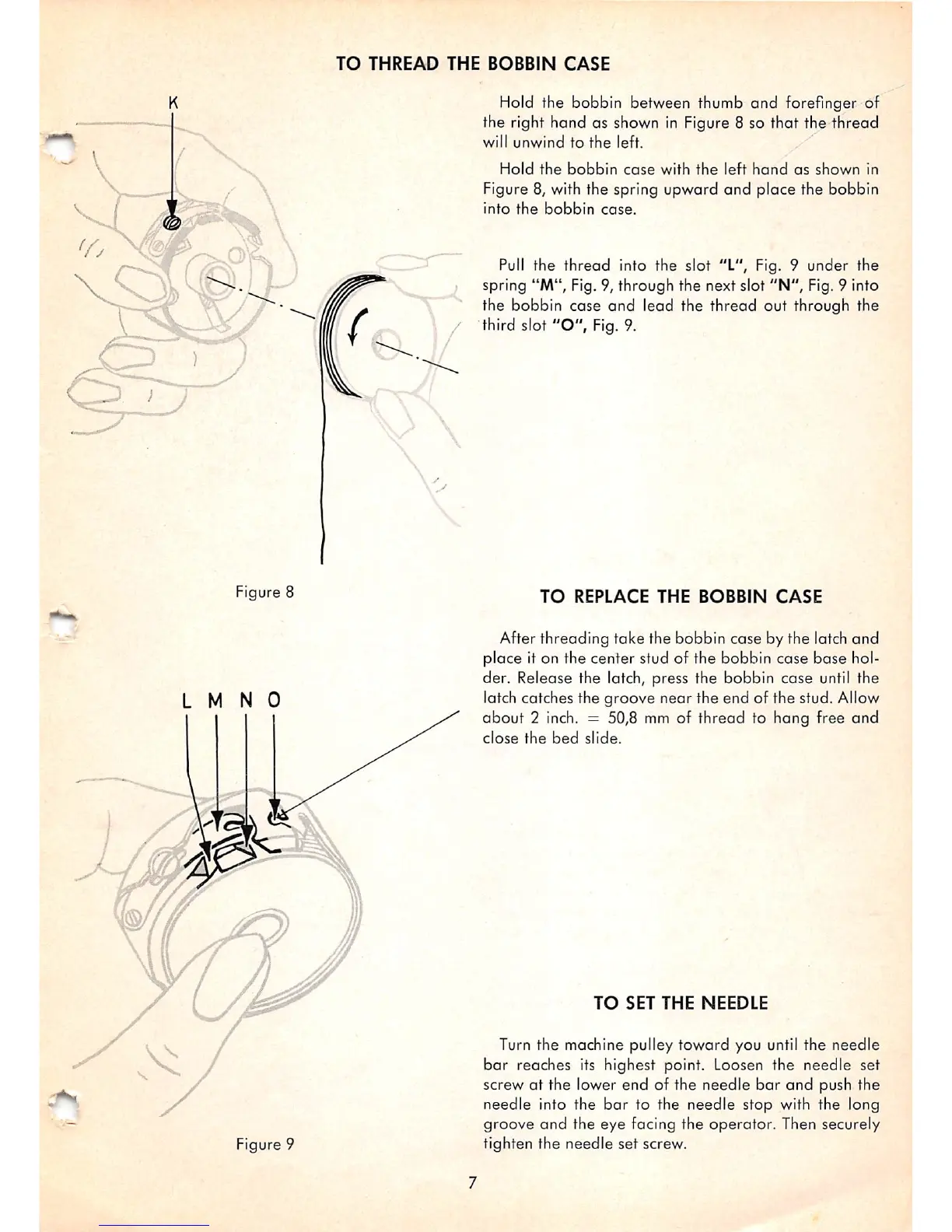

Figure 9
TO
THREAD
THE
BOBBIN
CASE
(
\
Hold the bobbin between thumb
and
forefinger of
the right hand as shown in Figure 8 so that the thread
will
unwind
to
the
left.
Hold
the
bobbin
case
with
the
left
hand
as
shown
in
Figure 8, with the spring upward
and
place the bobbin
into
the
bobbin
case.
Pull
the thread into the slot "L", Fig. 9 under the
spring Fig. 9, through the next slot
"N",
Fig. 9 into
the
bobbin
case
and
lead the
thread
out through the
third slot
"O",
Fig. 9.
TO
REPLACE
THE
BOBBIN
CASE
After threading
take
the
bobbin
case by the latch
and
place
it on the center stud of the bobbin
case
base
hol
der. Release the latch, press the bobbin case until the
latch catches the groove near the end of the stud. Allow
about
2 inch. = 50,8 mm of thread to hang free
and
close
the
bed
slide.
TO
SET
THE
NEEDLE
Turn the machine pulley
toward
you until the
needle
bar
reaches its highest point. Loosen the needle set
screw
at
the lower
end
of the
needle
bar
and
push the
needle
into the
bar
to the
needle
stop with the long
groove
and
the
eye
facing the
operator.
Then securely
tighten the needle set screw.
