Singer NO. 27 - Shuttle Operations; Removing the Shuttle; Threading the Shuttle

10
27 & 28
To Remove the Shuttle
Open the front slide of the machine and turn the hand wheel towards you until the shuttle
comes full under the opening. Press down the point of the shuttle with the thumb and lift out.
Turn the open end of the shuttle downward and the bobbin will drop out.
NOTE: The shuttle should not be lifted out by the spring.
To Thread the Shuttle

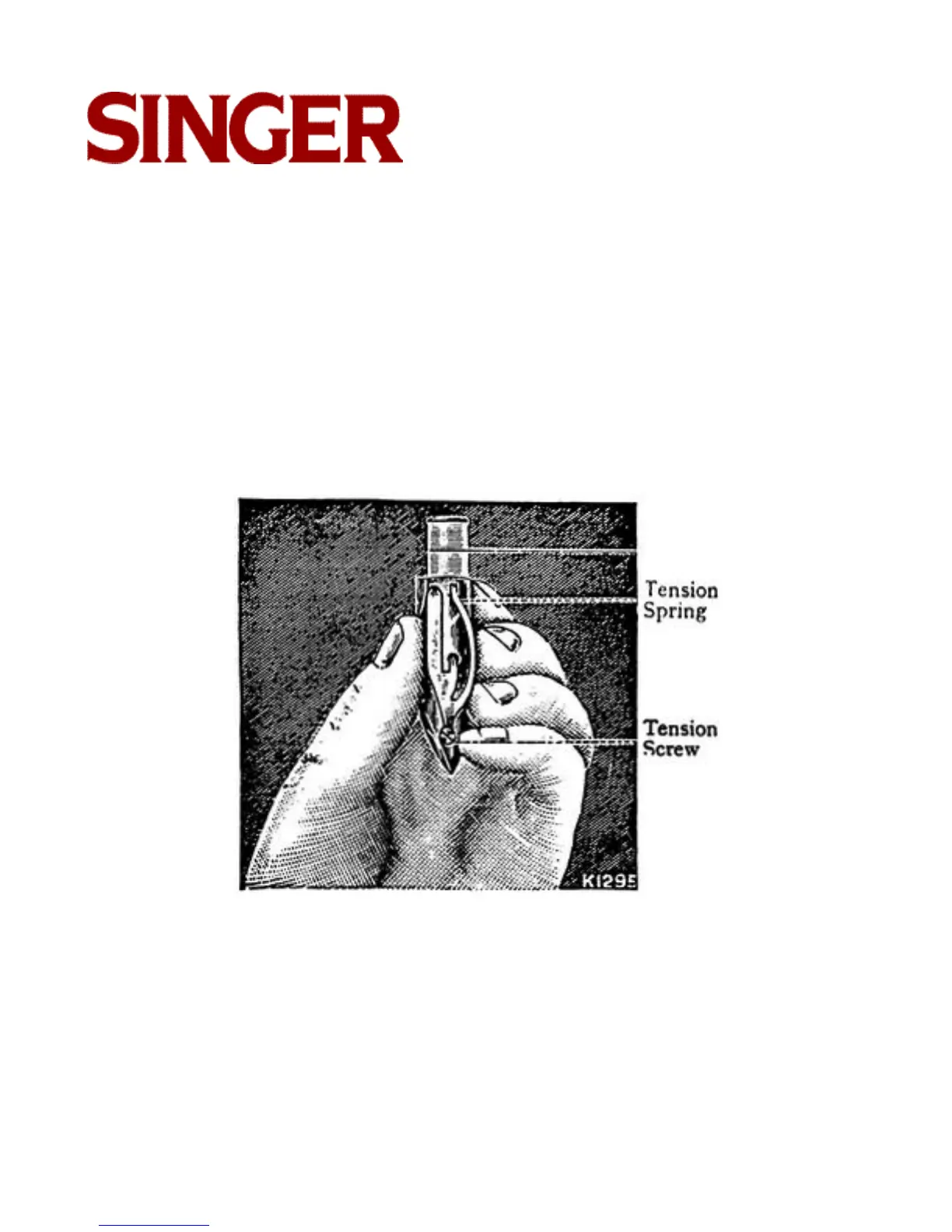

Hold the shuttle, as in Fig. 7, and insert the bobbin so that the end of the thread draws from
the left towards the right, as shown in the illustration.
FIG. 7
