Singer NO. 27 - Hand Attachment Operation

5
27 & 28
The Hand Attachment
When the cover is removed from the machine, the hand attachment will be found to be out of
working position, as shown in Fig. 1.
To operate the machine, pull the small spring stud (2, Fig. 1) and turn the handle back until
the lever (1, Fig. 1) enters the socket (3, Fig. 1); also see that the hinged finger (4, Fig. 2) is
turned back between the spokes of the wheel. The machine will then be ready for working, as
shown in Fig. 2.
Before replacing the cover, the lever should be
disengaged, and the handle placed in the position shown in Fig. 1.

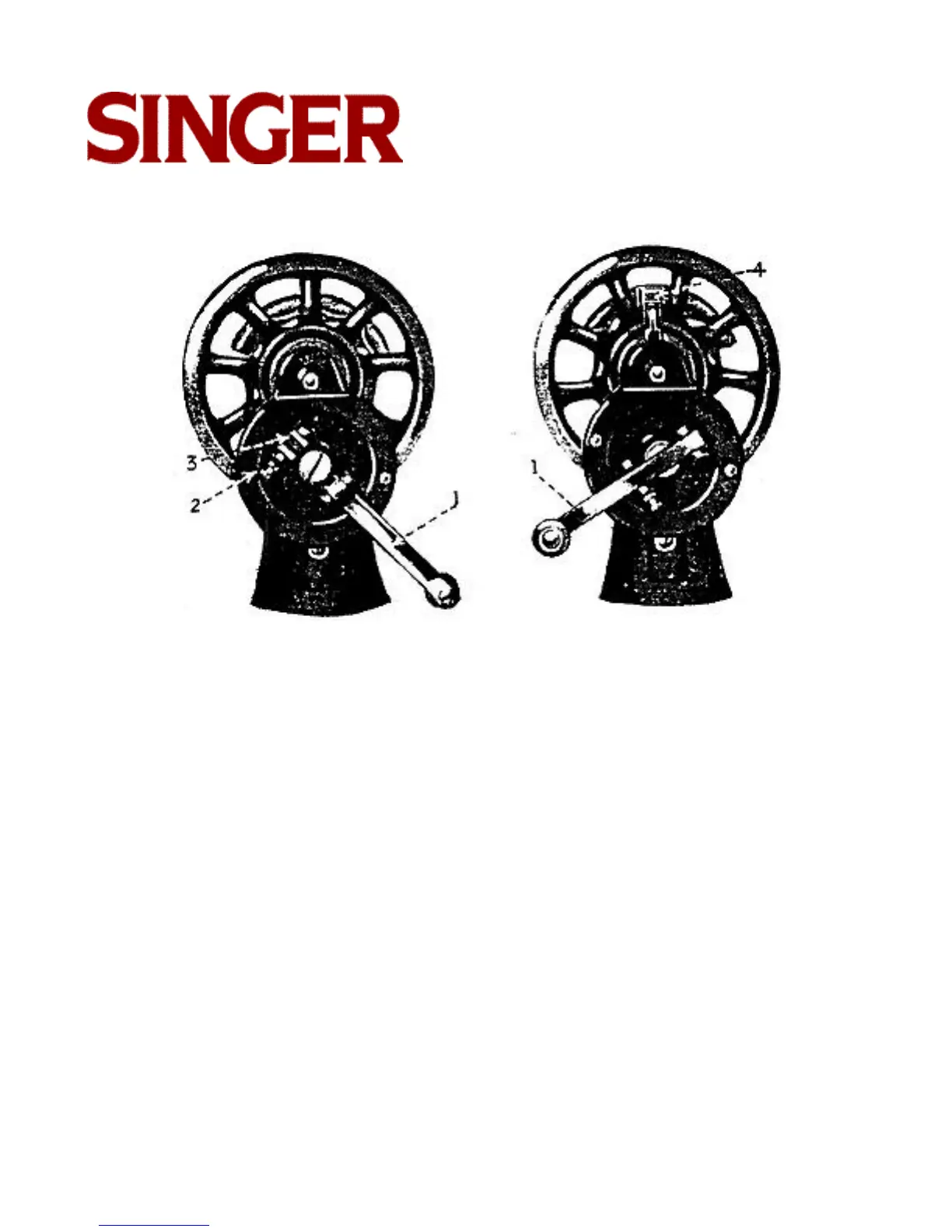

FIG. 1
FIG. 2
