PRE-OPERATION FUNCTION TEST
GTZZ18J Operation Manual 6-3 © Oct. 2022

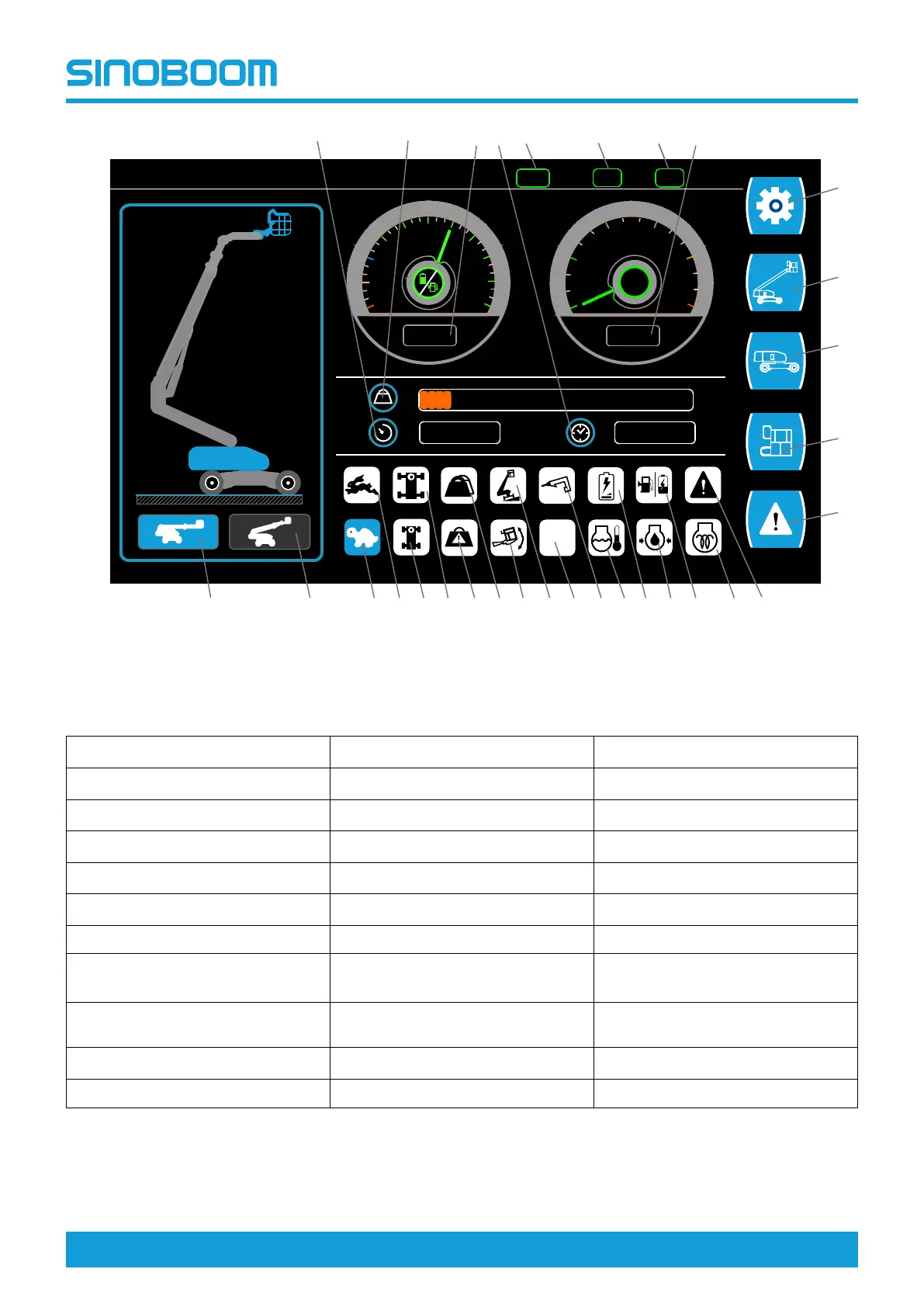

Figure 6-2 Ground controller display screen
Table 6-2
1. Current work hours
12. Glow plug
23. Not used
2. Platform load
13. Low diesel/battery alarm
24. Not used
3. Diesel/battery gauge 14. Engine oil pressure alarm 25. Engine high idle
4. Accumulated work hours
15. Low battery alarm 26. Engine low idle
5. Tachometer
16. Water temp alarm 27. Operating position
6. Setup menu
17. Inverter ON
28. Non-operating position
7. Machine info 18. Not used 29. Overload restriction
8. Turntable info 19. Chassis tilt alarm
30. Travel restriction (operating
position)
9. Platform info 20. Platform tilt alarm
31. Travel and boom movement
allowed
10. Alarm message 21. Heavy load indicator
11. Fault alarm 22. Overload alarm
E
20
40
60
80
F
60 %
0
1
2
3
4
5
0
RPM
X1000
H H
11.5
0011.5
15
1 2
6
5
7
4
10
1112
9
13
8
14
3
20 1925 24 1622 172123 18262728
KG
29
DR
D/B
3031
FE
