TRANSPORTING AND LIFTING THE MACHINE
LIFTING THE MACHINE
WITH A CRANE
Follow these requirements when lifting the machine by
crane:
1. The boom must be stowed while lifting the machine.
2. Ensure the boom is positioned in the same direction
as the travel direction of the chassis.
3. Remove all loose parts from the machine.
4. Determine the center of gravity of the machine: X=
187mm (0.6ft); Y=2560mm (8ft 16in).

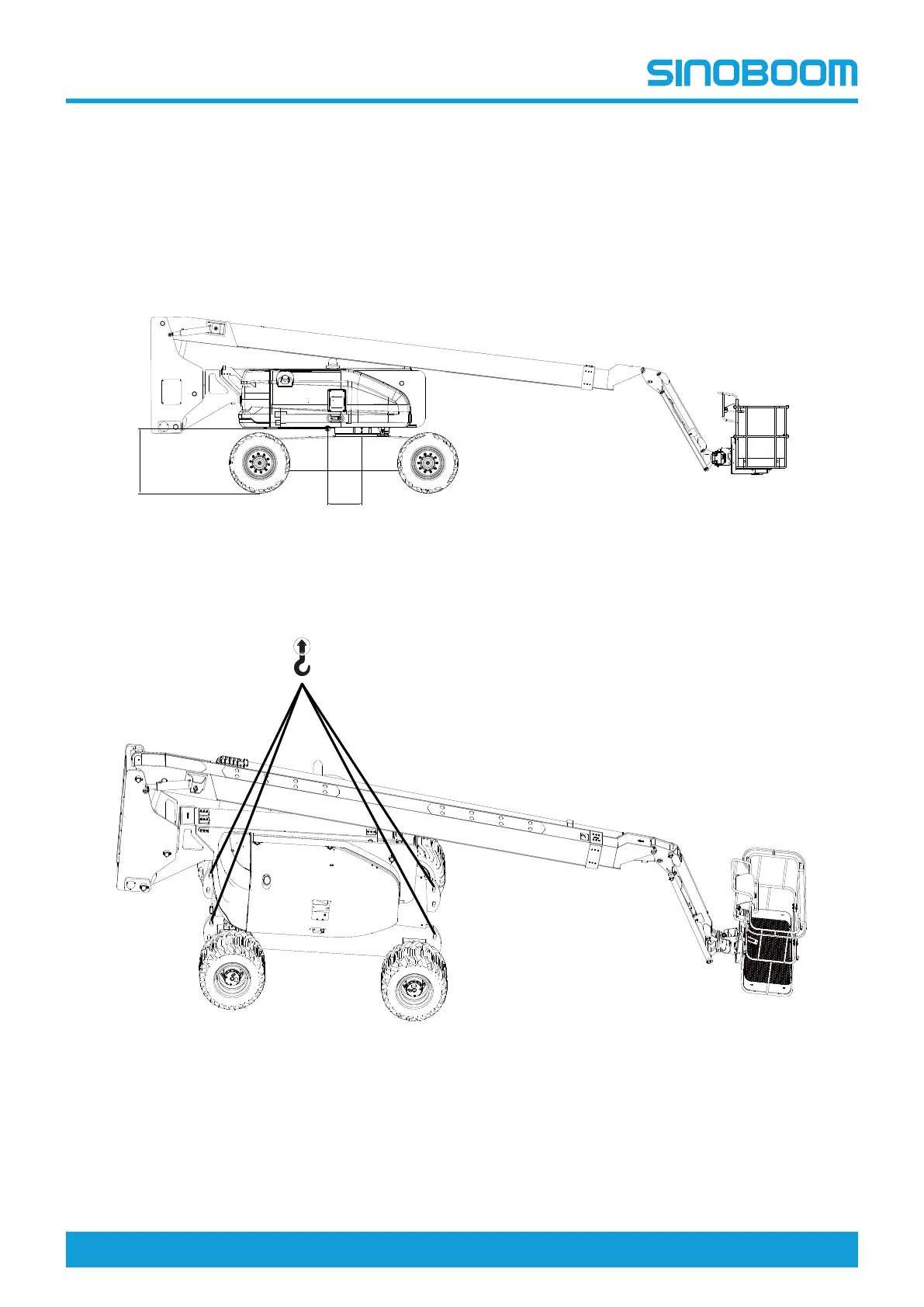

Figure 8-1
5. Lift the machine as shown in the figure below.
Figure 8-2
6. Connect the rigging to the lifting point specified on
the machine. Adjust the rigging to avoid damage to
the machine and to keep the machine horizontal.
