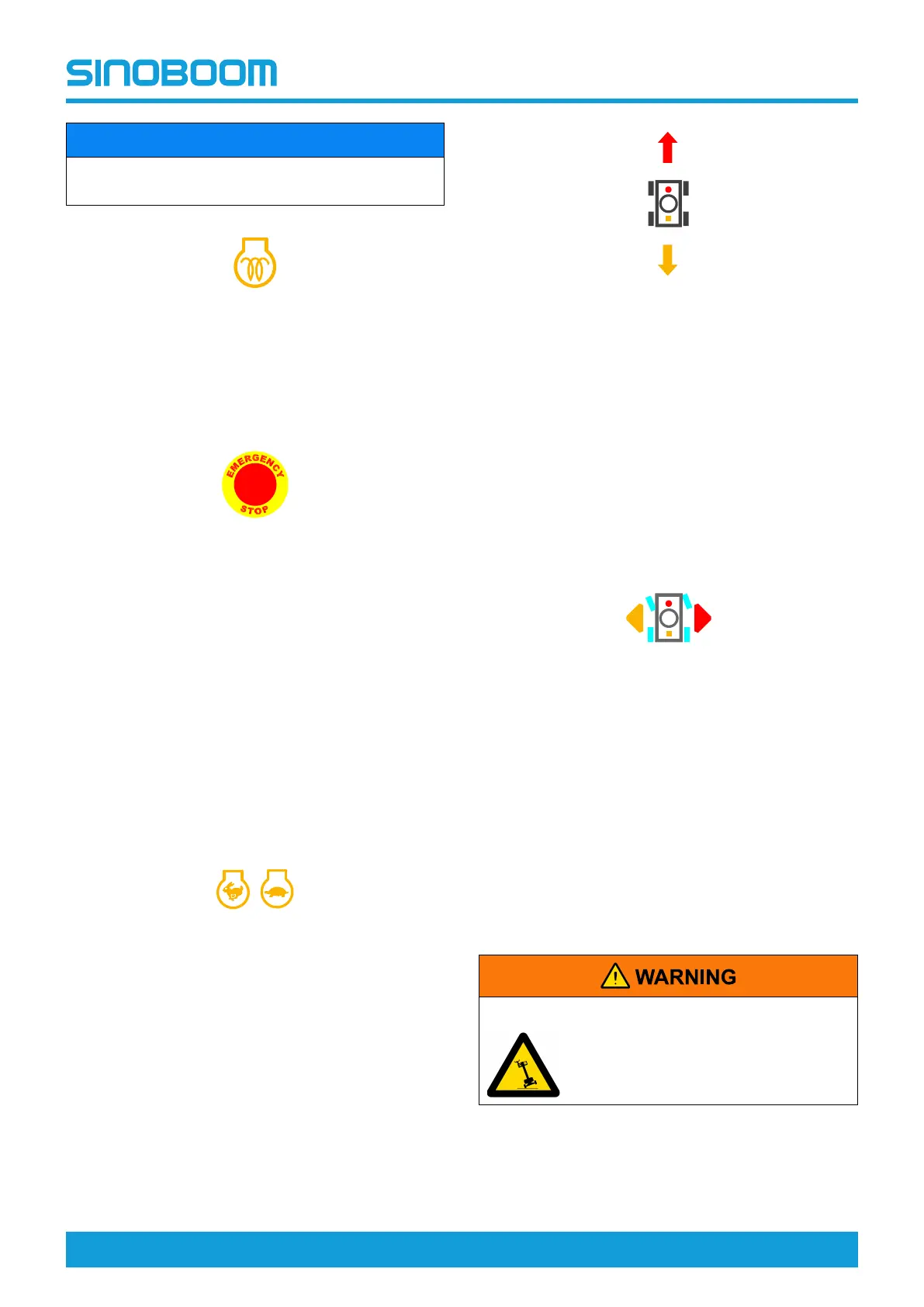

PRE-OPERATION FUNCTION TEST
GTZZ18J Operation Manual 6-9 © Oct. 2022
NOTICE
Run the engine at low idle for 3–5min to preheat the
engine before applying any loads.
Flip the glow plug switch and hold it for 6-10s, the
engine should take in air for preheating.
Note: The electrically controlled engine can be
preheated automatically.
Emergency stop button
1. Push in the emergency stop button at the platform
controller to OFF position and flip the engine start
switch. The engine should fail to start and all
functions should be inoperative.
2. Pull out the emergency stop button at the platform
controller and ground controller to ON position
and flip the engine start switch. The engine
should start normally.
3. Push in the emergency stop button at the ground
controller to OFF position and pull out the
emergency stop button on the platform controller
to ON position, and then flip the engine start
switch, the engine should fail to start and all
functions should be inoperative.
Engine speed select switch
Flip the engine speed select switch, the engine
speed should be switched between high/low speed.
Drive function
1. Depress the foot switch and move forward the
Drive/Steer proportional control handle, the
machine shall drive forward smoothly without
noticeable impact in startup; when the handle is
released, the machine should be held reliably.
2. Depress the foot switch and move backward the
Drive/Steer proportional control handle, the
machine should drive reverse smoothly without
noticeable impact in startup; when the handle is
released, the machine should be held reliably.
Note: The drive speed is in direct proportion to the
stroke of control handle.
Steer function
1. Depress the foot switch and move forward the
Drive/Steer proportional control handle, and press
the left side of the thumb rocker switch on top of
the drive control handle, the machine should steer
left.
2. Depress the foot switch and move forward the
Drive/Steer proportional control handle, and press
the right side of the thumb rocker switch on top of
the drive control handle, the machine should steer
right.
Note: The steering drive speed is in direct proportion to
the stroke of control handle.
Drive speed select switch
TIPPING HAZARD
The machine must drive at low speed
when not on a level surface.
∅52
∅22
∅35
∅55
4X ∅7
∅12.5
R2.5
∅22
4XR6
235
98
78
220
4065
57.540.5
11.2
7.5
1
2
3
4
5
6
7
1
2
3
4
5
6
7
