© Oct. 2022 7-2 GTZZ18J Operation Manual
OPERATING THE MACHINE

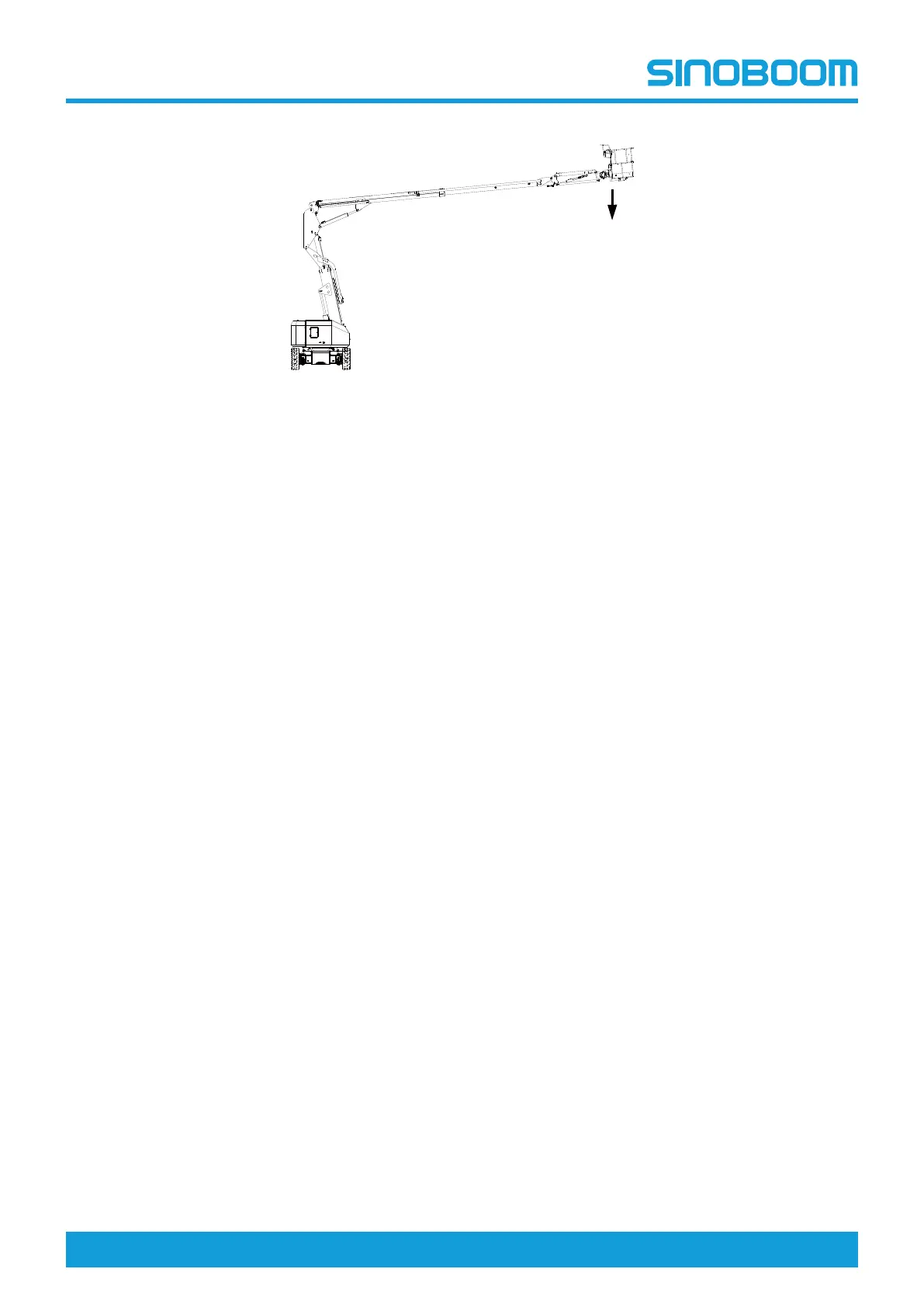

Figure 7-1 Position of least forward stability
1. Turntable rotated to the position as shown in the figure, articulated boom fully raised, and telescopic
articulated boom not extended;
2. Main boom kept horizontal;
3. Telescopic boom fully extended;
4. Jib boom kept horizontal;
5. The machine will tip over in the direction as indicated by the arrow if overloaded or operated on a tilted
surface beyond the maximum allowable tilt angle.
