© Mar. 2022 6-6 GTTZ10EJ Operation Manual
PRE-OPERATION FUNCTION TEST

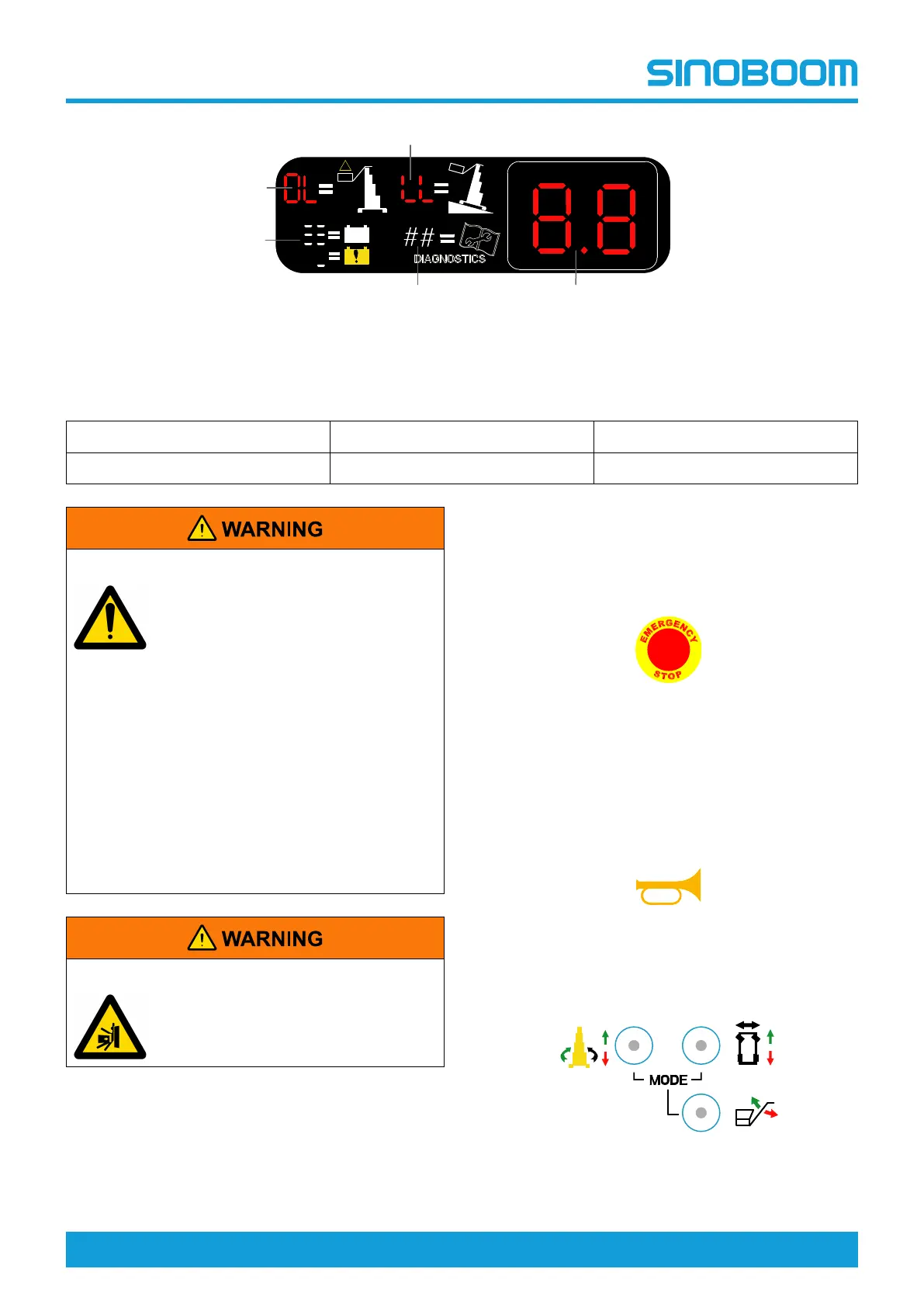

Figure 6-3 Platform controller display
Table 6-3
1. Overload symbol (OL) 3. Tilt symbol (LL) 5. Alarm display
2. Battery level symbol 4. Fault code
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate the machine with
the ground controller if there are
still persons on the platform.
• Confirm if the joystick is in the
Neutral position before pushing in
the emergency stop button at the
platform controller, and if not, do
not operate the machine to avoid
accidents.
• Never operate the machine if any
joystick or switch that controls
the platform movement does not
return to the OFF position after
being released, or else personal
injuries may result.
COLLISION HAZARD
Before operating the boom, ensure the
area near or under the platform is clear
of persons or obstructions.
Preparation
1. Turn the key switch on the ground controller to the
platform control position.
2. Pull out the emergency stop buttons on the ground
and platform controllers to ON position.
3. Make sure that the associated indicator lights are
on and no alarm messages are shown on the
display.
Emergency stop button
1. Push in the emergency stop button on the
platform controller to OFF position, and then all
functions should not work.
2. Pull out the emergency stop button on the
platform controller to ON position.
Horn button
Push the horn button, the horn should sound to alert
personnel around.
Function button
Push the function button before activating the
associated function, otherwise the function will not
work.
