Sinoboom ML270EJ - Platform Controller

© Mar. 2022 6-8 GTTZ10EJ Operation Manual
PRE-OPERATION FUNCTION TEST
PLATFORM CONTROLLER
(SINOBOOM SYSTEM)
NOTICE
All tests of the platform controller should be
completed in one cycle.

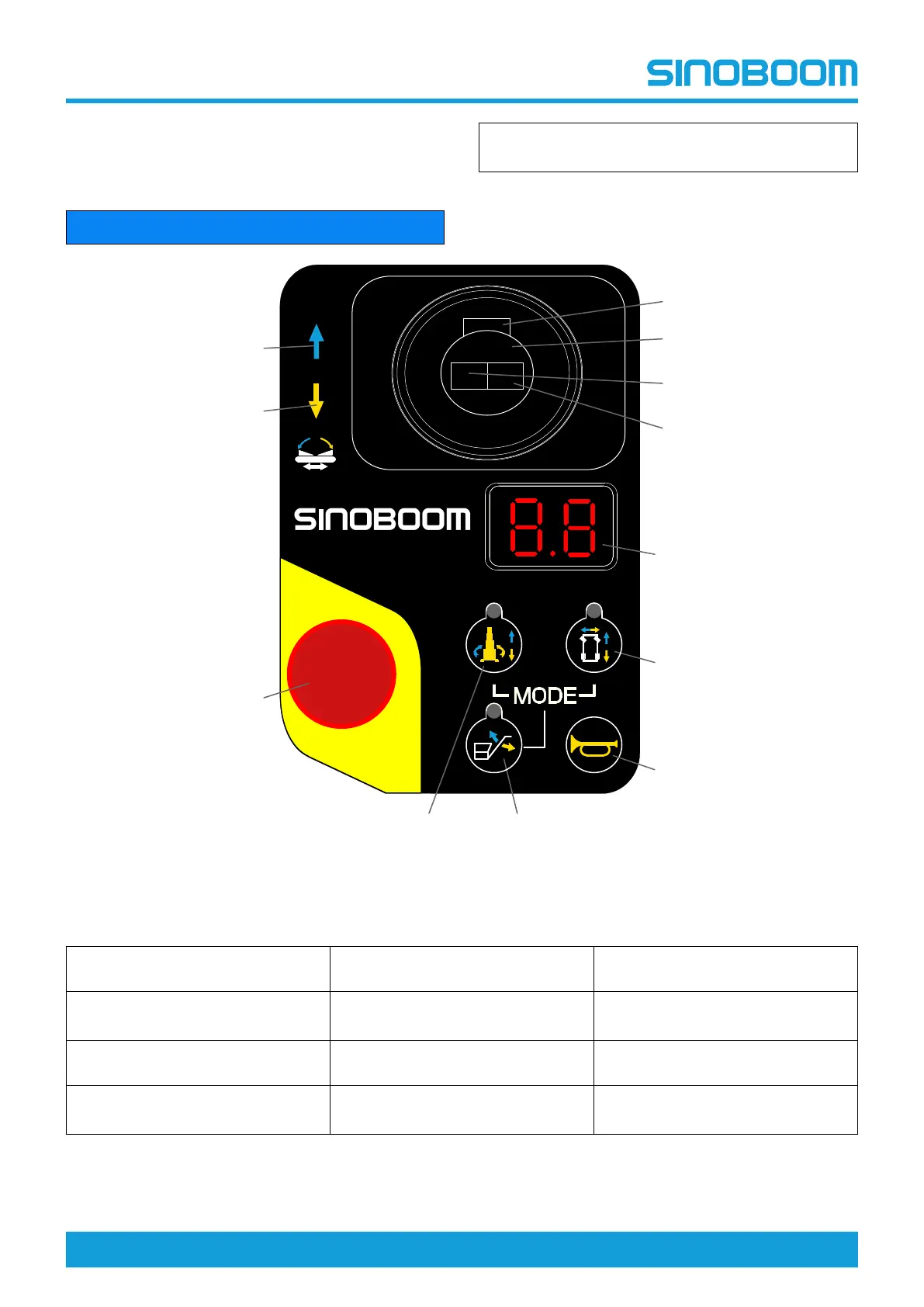

Figure 6-4 Platform controller
Table 6-4
1. Enable button
5. Main boom lift/turntable rotate
function button
9. Drive reverse/lower direction
arrow
2. Joystick
6. Jib boom lift function button
10. Display (for battery level and
fault codes)
3. Rocker switch for turntable rotate
left/wheel steer left functions
7. Emergency stop button 11. Drive/steer function button
4. Rocker switch for turntable rotate
right/wheel steer right functions
8. Drive forward/lift direction arrow 12. Horn button
EMERGENCY
S
T
O
P
KG
9
10
11
12
13
1
2
3
4
5 6
7
8
9
10
11
12
STOP STOP
