SIP T1400 User Manual

14
TECHNICAL SPECIFICATION
Note: Only the T800 and T1400 should be operated from a 13A supply.
Note: Operation of the T1600 from a 13A supply could invalidate the war-
ranty and affect performance.
Model 05703 T800 05705 T1400 05707 T1600
Input Voltage 230V ~ 50/60Hz 230V ~ 50/60Hz 230V ~ 50/60Hz
Input Current 13 amps 13 amps 16 amps
OCV 68V 68V 68V
Welding Current Range
(Amps)
10 - 80 20 - 140 20 - 160
Welding Voltage 20.4v - 23.2V 20.8v - 25.6V 20.8v - 26.4V
Weld Thickness (mild steel) 1.5mm - 4mm 1.5mm - 7mm 1.5mm - 8mm
Duty Cycle
80 amps @ 60% 140 amps @ 20% 160 amps @ 20%
81 amps @ 60% 92 amps @ 60%
62 amps @ 100% 63 amps @ 100% 71 amps @ 100%
Power Factor 0.65 0.65 0.65
Efficiency 85% 85% 85%
Insulation Class H H H
Protection IP21S IP21S IP21S
Net Weight 2.8Kg 3.8Kg 3.8Kg
15

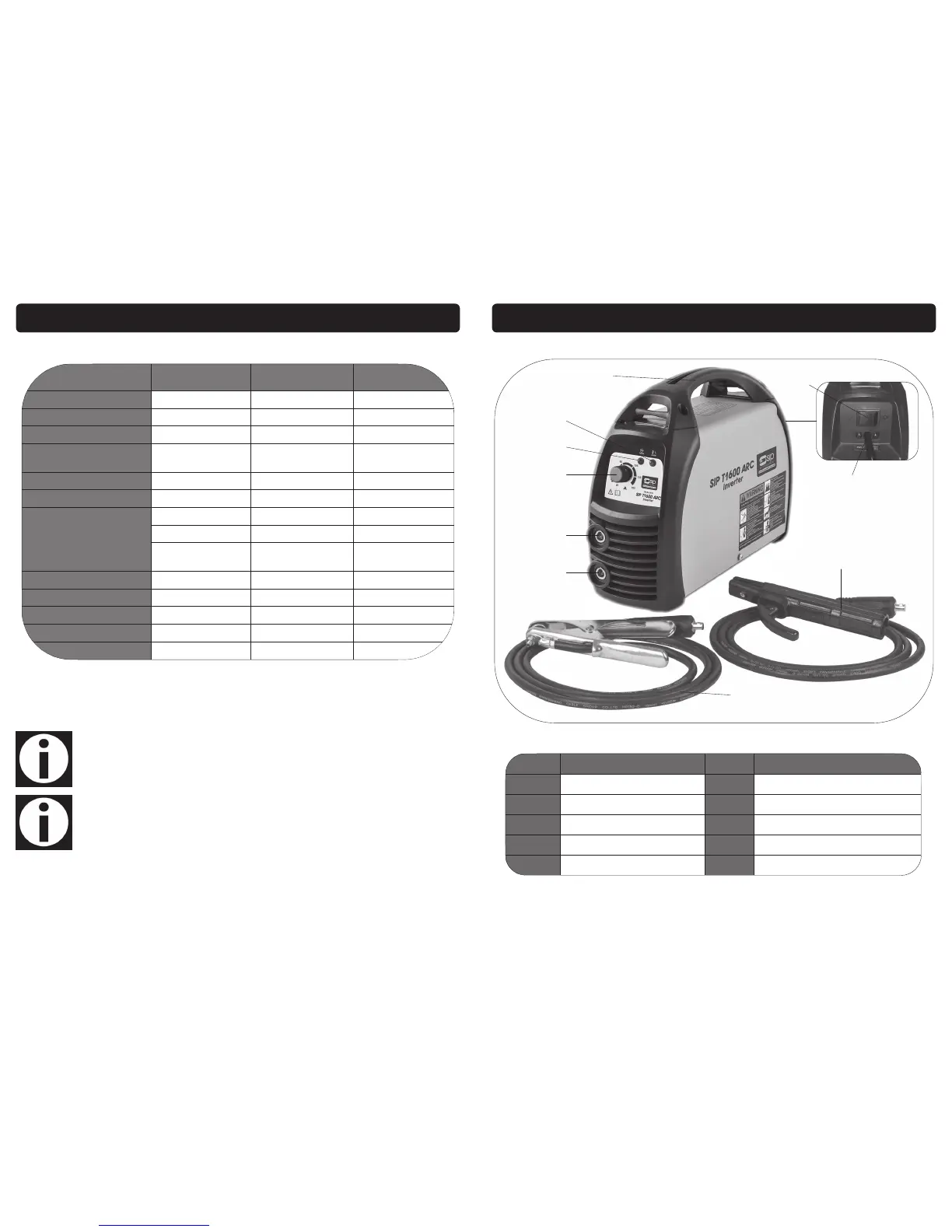

GETTING TO KNOW YOUR INVERTER WELDER
Ref. No. Description Ref. No. Description
1. Negative Dinse Socket 6. Carry Handle
2. Positive Dinse Socket 7. On/Off Switch
3. Amperage control 8. Mains Lead
4. Power Indicator 9. Welding Cable (c/w electrode holder)
5. Thermal Overload Indicator 10. Earth Cable (c/w earth clamp)
1
2
3
4
5
6
7
8
9
10

SIP T1400 Specifications

General

Brand	SIP
Model	T1400
Category	Welding System
Language	English
