24

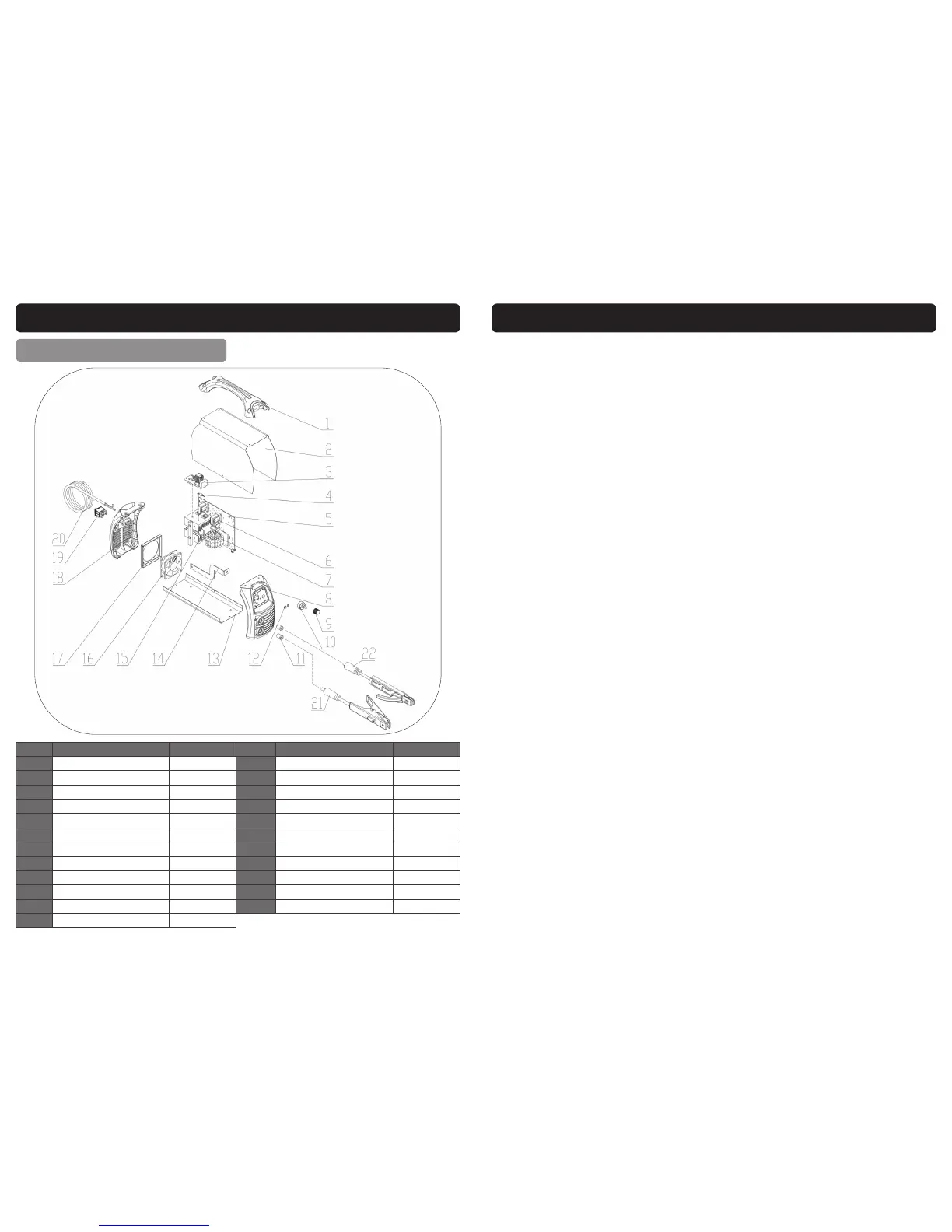

EXPLODED DRAWING / PARTS LIST
T800 (05703)
Ref. No. Description Sip Part No. Ref. No. Description Sip Part No.
1. Handle WE07-00051 13. Chassis WE07-00063
2. Cover WE07-00052 14. Positive Output Busbar WE07-00064
3. EMC Board WE07-00053 15. Electrolytic Capacitor WE07-00065
4. NTC Resistance WE07-00054 16. Fan WE07-00066
5. Main Control PCB WE07-00055 17. Fan Fixing Plate WE07-00067
6. Power Transformer WE07-00056 18. Plastic Rear Cover WE07-00068
7. Main Transformer WE07-00057 19. Main On/Off Switch WE07-00069
8. Front Plastic Panel WE07-00058 20. Mains Lead WE07-00070
9. Potentiometer knob WE07-00059 21. Earth Lead c/w Clamp WE07-00037
10. Potentiometer WE07-00060 22.
Welding cable c/w Electrode Holder
WE07-00036
11. Dinse Socket WE07-00061 N/A Front Cover Sticker WE07-00071
12. LED Holder WE07-00062
5
SAFETY INSTRUCTIONS….cont
should be kept at a safe distance from the work area.
STORE THE INVERTER WELDER SAFELY WHEN NOT IN USE: The inverter welder should be
stored in a dry location and disconnected from the mains supply, and out of the
reach of children.
USE SAFETY CLOTHING / EQUIPMENT: Use a CE approved welding mask at all times with
the correct shade of filter lens. A fume extractor should be used particularly where
there is little or no ventilation.
PROTECT YOURSELF FROM ELECTRIC SHOCK: When working with the inverter welder,
avoid contact with any earthed items (e.g. pipes, radiators, hobs and refrigerators,
etc.). It is advisable wherever possible to use an RCD (residual current device) at the
mains socket.
STAY ALERT: Always watch what you are doing and use common sense. Do not oper-
ate the inverter welder when you are tired or under the influence of alcohol or drugs.
DISCONNECT THE INVERTER WELDER FROM THE MAINS SUPPLY: When not in use and
before servicing.
AVOID UNINTENTIONAL STRIKING: Make sure the main switch is in the Off position be-
fore connecting the inverter welder to the mains supply.
NEVER LEAVE THE INVERTER WELDER CONNECTED WHILST UNATTENDED: Turn the invert-
er welder off and disconnect it from the mains supply between jobs. Do not leave the
inverter welder connected to the mains supply if no more welding is to be done.
DO NOT ABUSE THE MAINS LEAD: Never attempt to move the inverter welder by the
mains lead or pull it to remove the plug from the mains socket. Keep the mains lead
away from heat, oil and sharp edges. If the mains lead is damaged, it must be re-
placed by the manufacturer or its service agent or a similarly qualified person in order
to avoid unwanted hazards. All extension cables must be checked at regular intervals
and replaced if damaged.
CHECK FOR DAMAGED PARTS: Before every use of the inverter welder, any damage
found should be carefully checked to determine that it will operate correctly, safely
and perform its intended function. Any damaged, split or missing parts that may af-
fect its operation should be correctly repaired or replaced by an authorised service
centre unless otherwise indicated in this instruction manual.
KEEP ALL COVERS / PANELS IN PLACE: Never operate the inverter welder with any co-
vers / panels removed, this is extremely dangerous.
MAINTAIN THE INVERTER WELDER WITH CARE: Keep the earth clamp and electrode
holder clean for the best and safest performance.
USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual, your distributor or
SIP directly for recommended accessories. Follow the instructions that accompany the
accessories. The use of improper accessories may cause hazards and will invalidate
any warranty you may have.
SECURE THE WORKPIECE: Always use welding clamps to secure the workpiece. This
frees up both hands to operate the inverter welder correctly.
DO NOT OVERREACH: Keep proper footing and balance at all times.
USE THE RIGHT TOOL: Do not use the inverter welder to do a job for which it was not
To Next Page
