OPTIONS

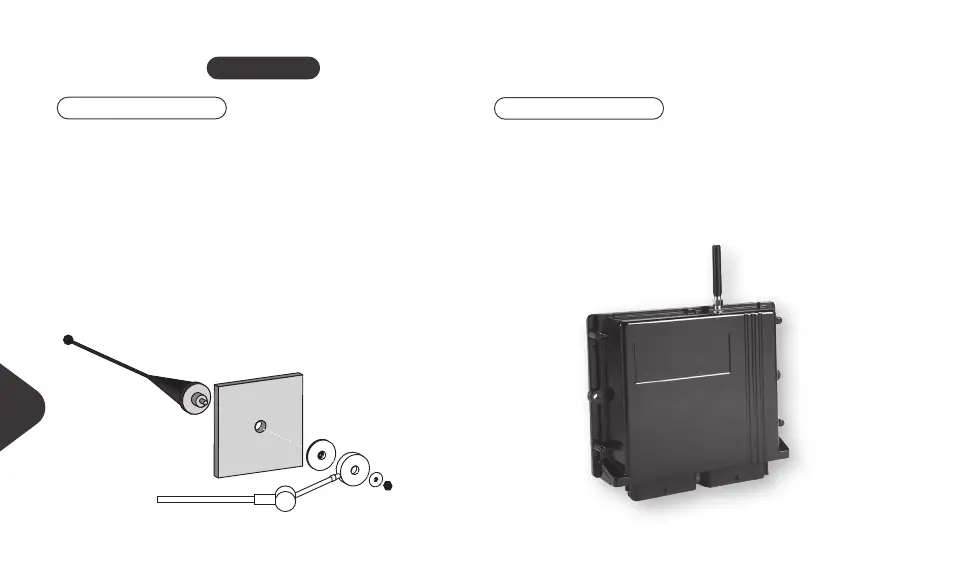

EXTERNAL ANTENNA
The External Antenna is used to improve reception capacity of the
CONTROLLER in cases where the latter must be mounted in positions not
ideal for the operation of applications based on radio transmissions. It is
connected to the CONTROLLER via an SMA screw connector.
The material needed for fixing is provided in the kit.
For a correct installation of the External Antenna:
1. Insert the antenna thread on the mounting surface.
2. Insert the insulating rubber on the antenna thread.
3. Insert the cable with the toothed part facing the rubber just inserted on
the antenna thread.
4. Insert the washer and close everything by tightening the nut.
5. Cover everything with the protection on the cable.
STUB ANTENNA
The CNTR32 receiver is supplied with an external antenna (STUB) and relative
gasket. It must be mounted on the SMA connector on the back of the controller.
For a correct installation procedure:
1. Insert the gasket on the SMA connector thread on the back of the controller.
2. Screw the antenna onto the thread of the SMA connector as far as it will go.
ANTENNA
RUBBER
CABLE
WASHER
NUT
ASSEMBLY
SURFACE
PROTECTION
CNTR32
90
