66

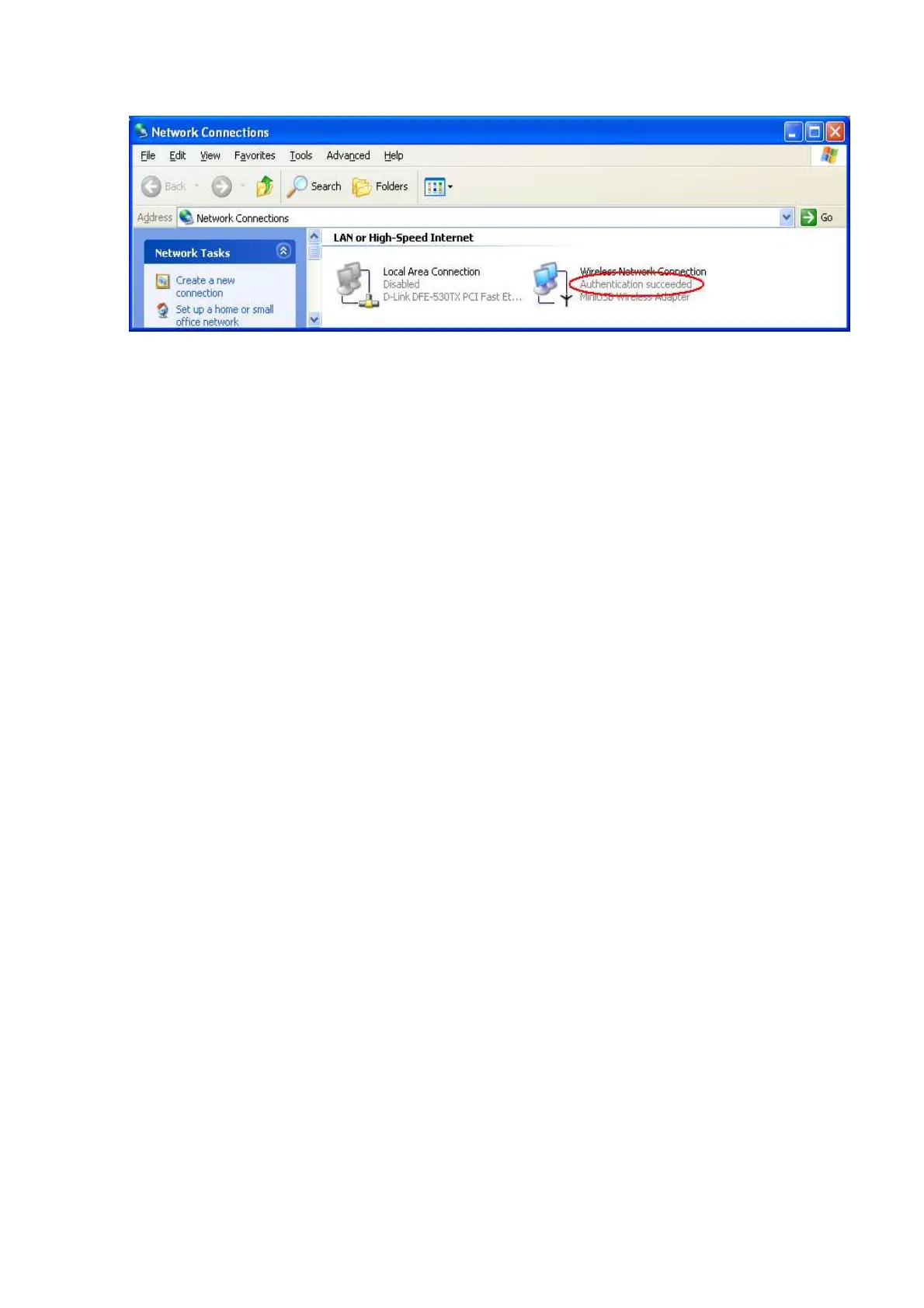

Figure 6: Authentication success
4.2DUT authenticate PC2 using PEAP-TLS.
• PC2 choose the SSID of DUT as the Access Point.
• Set authentication type of wireless client and RADIUS server both to
PEAP_TLS.
• Disable the wireless connection and enable again.
• The DUT will send the user's certificate to the RADIUS server, and then
send the message of authentication result to PC2.
• Windows XP will prompt that the authentication process is success or fail
and end the authentication procedure.
• Terminate the test steps when PC2 get dynamic IP and PING remote host
successfully.
Support Type: The router supports the types of 802.1x Authentication:
PEAP-CHAPv2 and PEAP-TLS.
Note.
PC1 is on Windows XP platform without Service Pack 1.
PC2 is on Windows XP platform with Service Pack 1a.
PEAP is supported on Windows XP with Service Pack 1 only.
Windows XP with Service Pack 1 allows 802.1x authentication only when data encryption
function is enable.
