Chapter 2 Hardware Installation
2.1 Physical details
2.1.1 Front LEDs

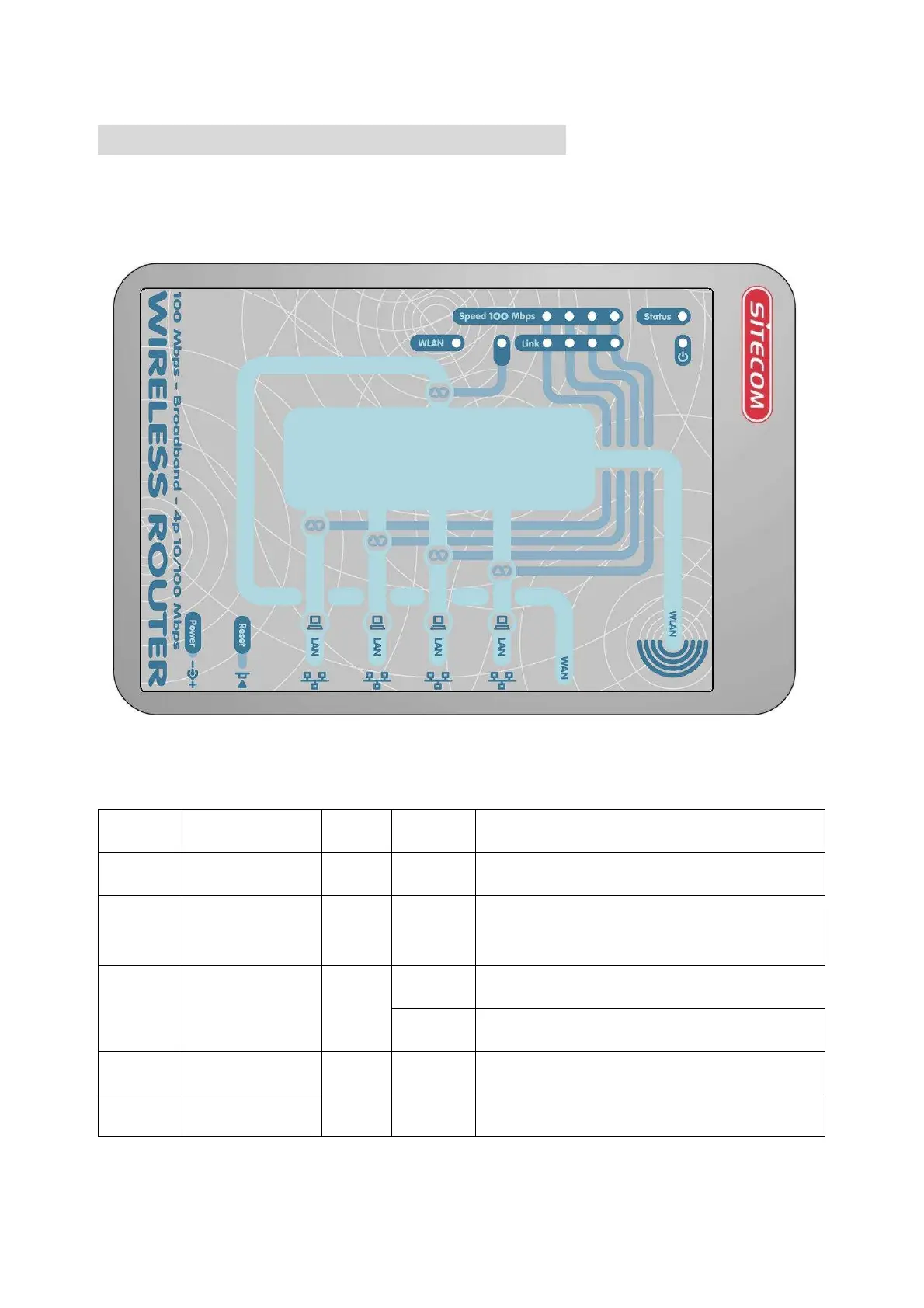

Figure 2-1 Front LEDs
LEDs:
LED Function Color Status Description
POWER Power indication
Green On Power is being applied to this product.
Status
System status
indicators
Green
Blinking
Status is flashing once per second to
indicate that the system is alive.
On The WAN port is linked.
WAN WAN port activity
Green
Blinking The WAN port is sending or receiving data.
WLAN Wireless activity
Green
Blinking Sending or receiving data via wireless
Link
Link status Green
On An active station is connected.
