ASSEMBLY INSTRUCTIONS
8

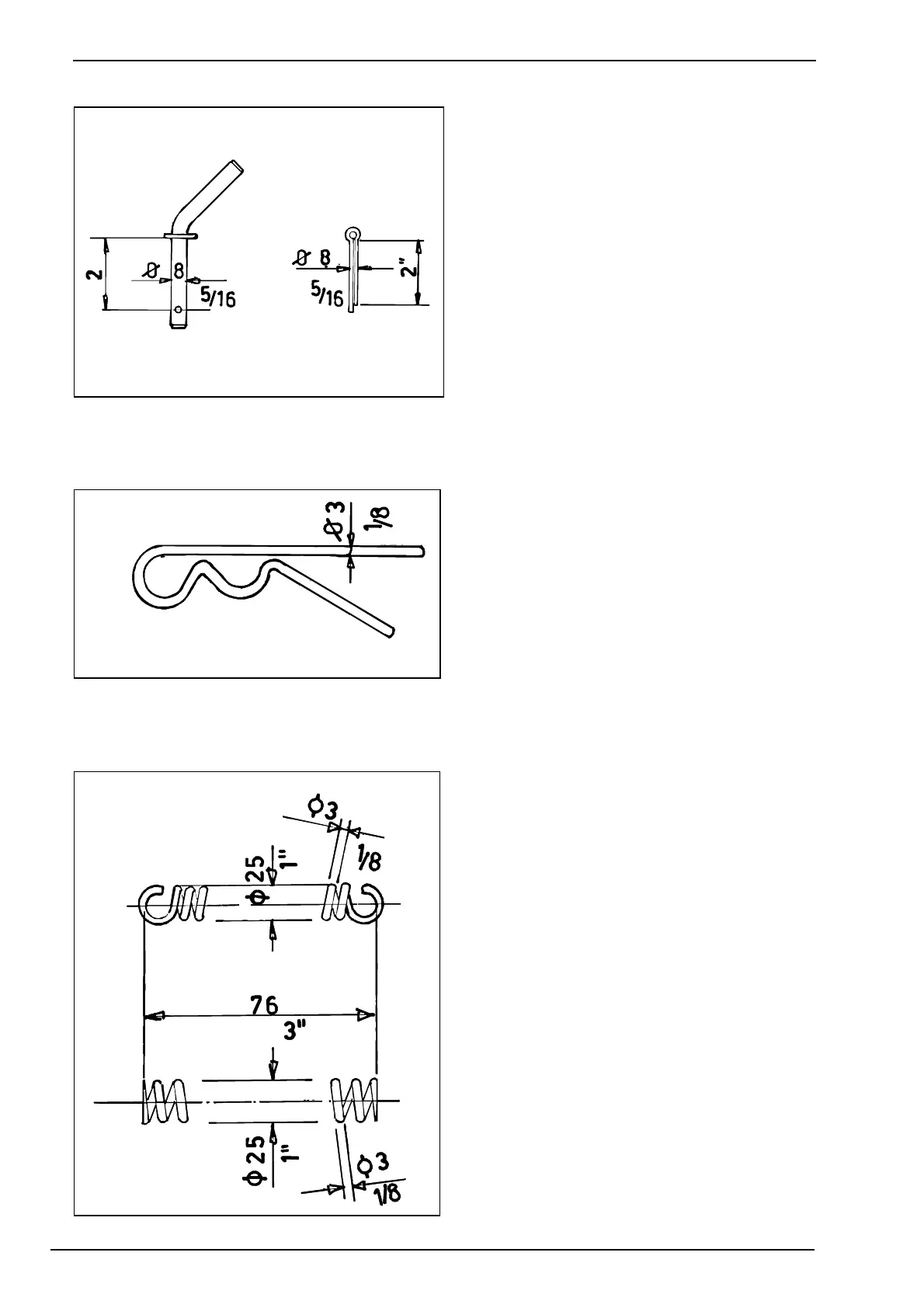

4) PINS AND SPLIT PINS
Example: a pin or split pin having a
diameter of 8 mm (5/16”) and a length of
50 mm (2”) will be listed as:
D 8 x 50 (D 5/16” x 2”)
5) CLIPS
Example: a clip with a diameter of 3 mm
(1/8”) will be listed as:
D 3 mm (1/8”)
6) SPRINGS
Example: a spring with a wire diameter of 3
mm (1/8”), outside diameter of 25 mm (1”)
and length of 76 mm (3”) will be listed as:
D 3 - 50 x 76 (D 1/8”- 2” x 3”)
