ASSEMBLY STEPS
10
2.

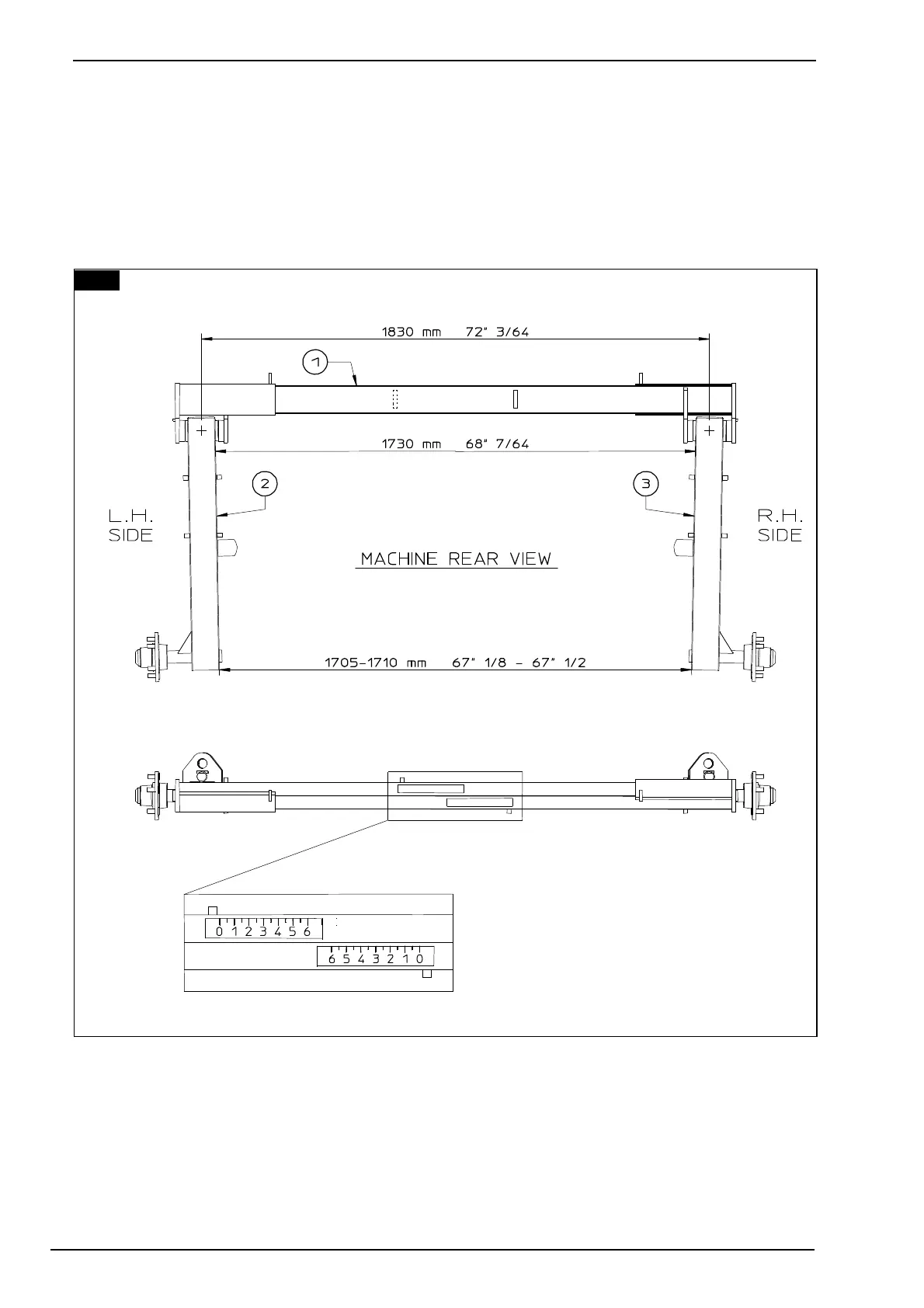

For correct assembly, the RH support 3 and the LH support 2 must lean in slightly towards the
center of the machine. After assembly, they must have the measurements given (minimum
width). At this point, before moving on to next step, keep in mind that the assembly is unstable
and therefore it is recommended that extreme caution be used.
NOTE: For the windrow width’s adjustment see page 44.
2
