sitrex MX 8 - Page 45

GENERAL INSTRUCTIONS FOR FIELD USE
43

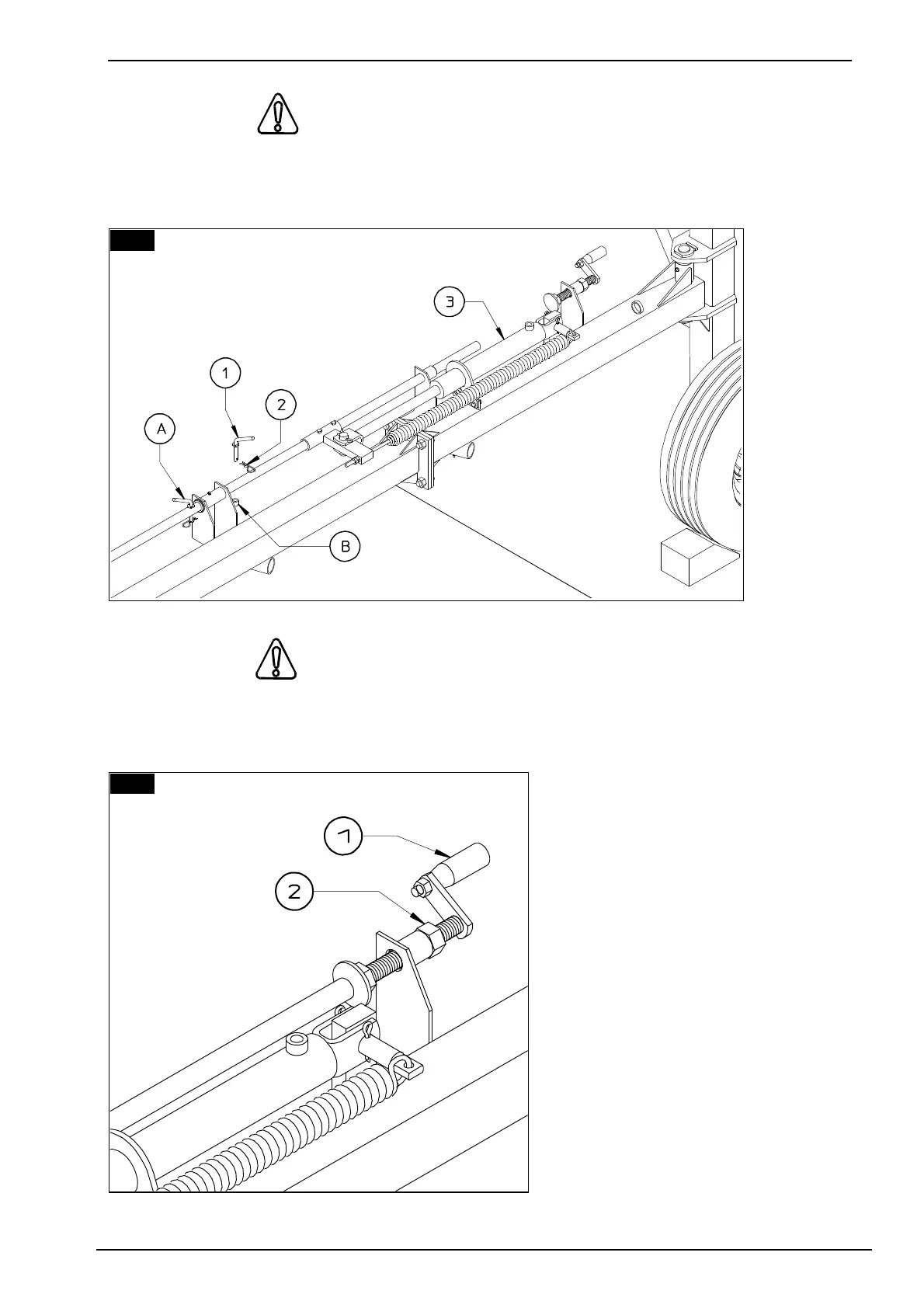

44. CAUTION
Remove clip 2 and pin 1 from position A and fasten them in position B. Operate cylinders 3 to
lower the rake wheels.
45. CAUTION
Adjust rake wheel pressure on the ground by turning crank 1. Normally the rake tines should
brush the ground. When properly adjusted, tighten nut 2 to lock the screw of lever 1 in place.
