46. CAUTION REAR OPENING

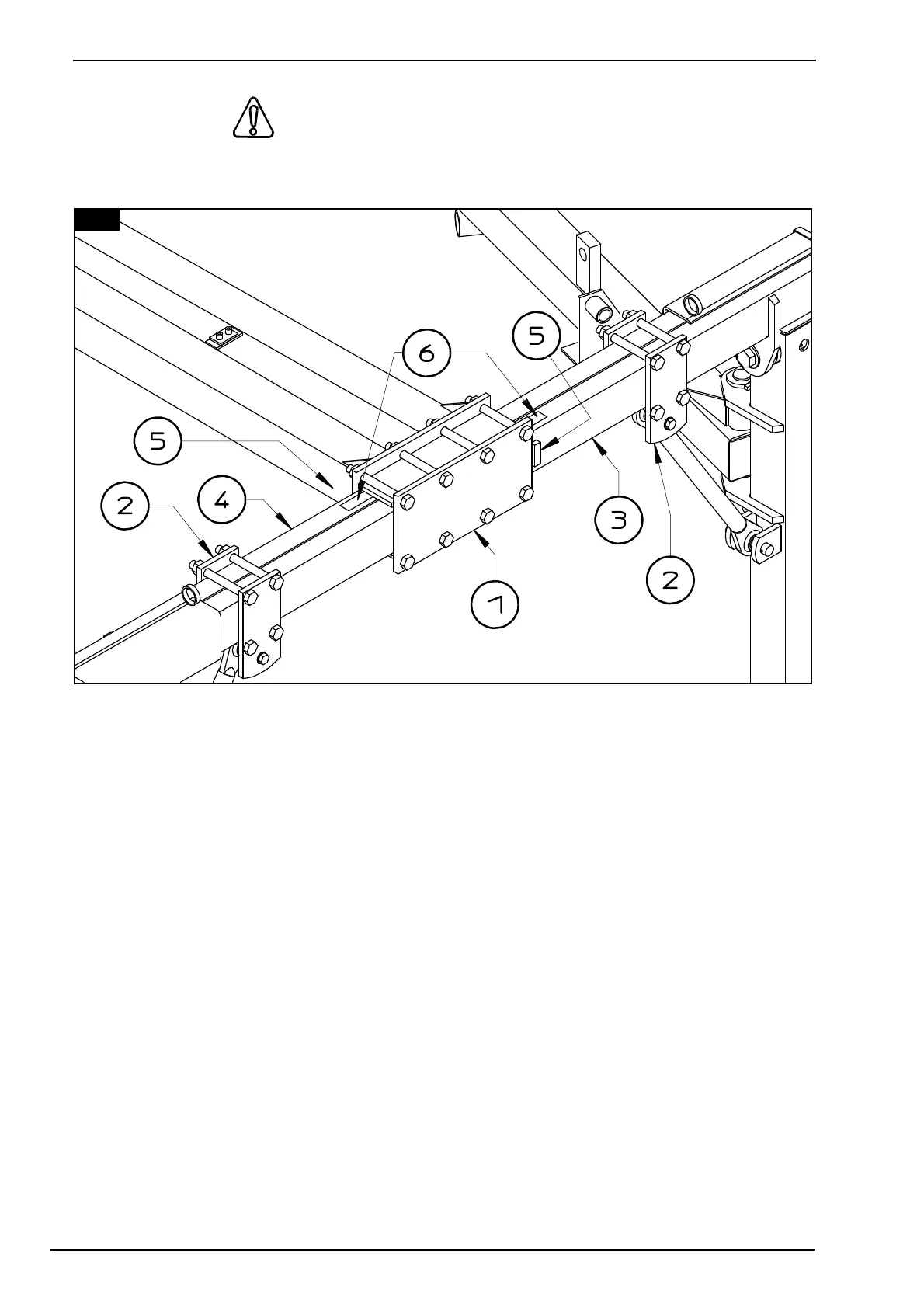

Loosen all screws which fasten the plates 2 and the conterplate 1. Pull out the cross member 3
& 4 paying attention on ledges 5 welded on cross member 3 & 4. The distances must be read
from label 6. The distances of cross members 3 & 4 must be the same. Once adjustments are
made, fasten all screws of plates 2 and counterplate 1.
NOTE: Cross members 3 & 4 must be opened the same amount keeping in this way the
drawbar in the middle of the machine.
REAR OPENING STARTS AT 72" TO A MAXIMUM OF 84" AND THIS ALLOWS TO OBTAIN
WINDROWS FROM APPROXIMATELY 3' AND 2" TO A MAXIMUM OF 5' AND 2".
NOTE : These measures are approximate and vary due to the type of forage, conditions of the
forage (whether it is more or less dry) and the type of ground.
