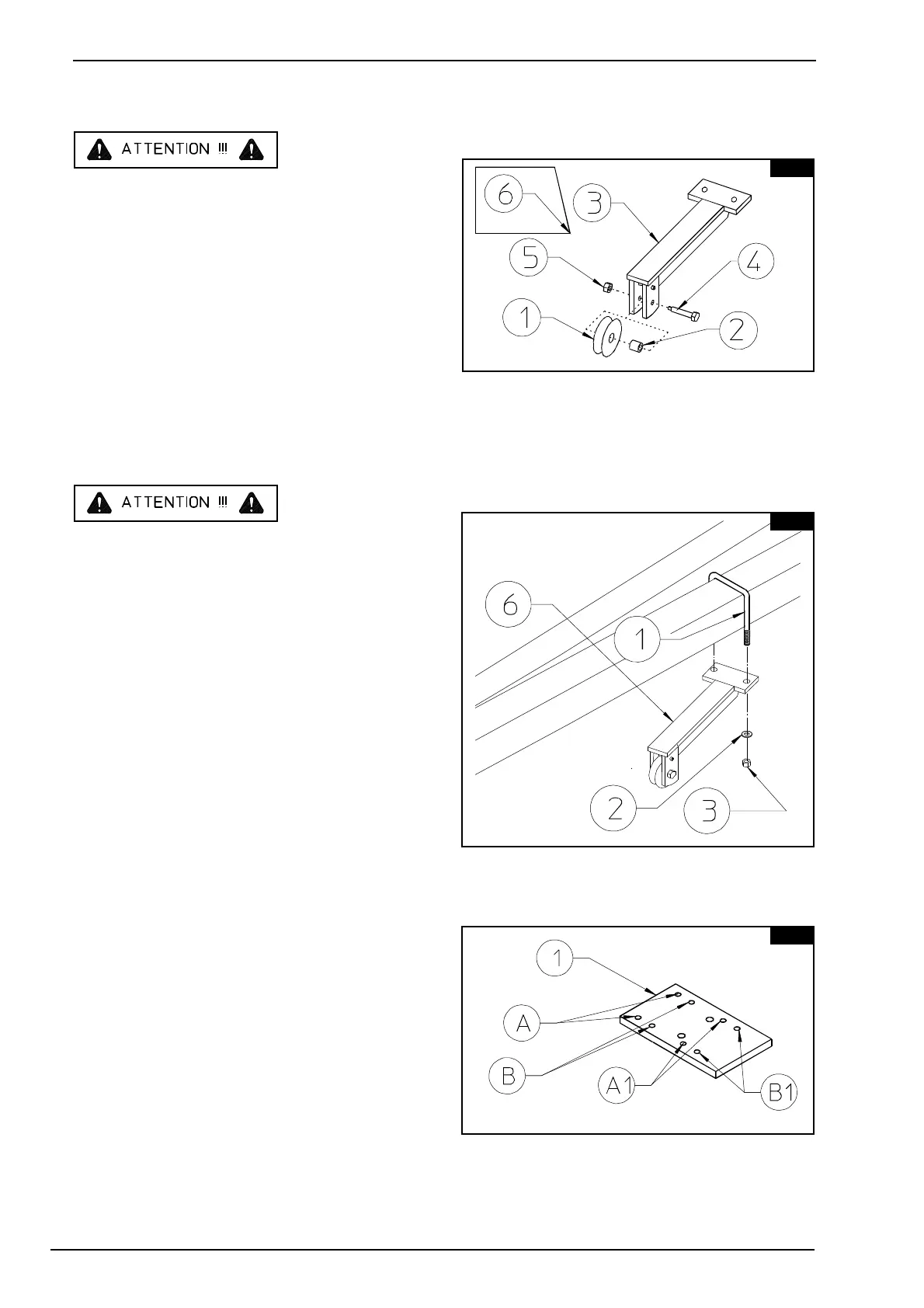

CENTRAL WHEELS KIT
50
9.3
Mount pulley 1 and bush 2 into
bracket 3 using special screws 4
and nuts 5.
In this step, you will use:
Item 4: 1 special screw M12x70
(1/2" x 2 3/4")
Item 5: 1 nut M12 (1/2")
9.4
Place the pulley support 6 against
the lower part of the drawbar and
fasten it with U bolt 1, washers 2
and nuts 3.
For positioning, see point 1.
In this step, you will use:
Item 2: 2 washers ø13 (ø1/2")
Item 3: 2 nuts M12 (1/2")
9.5
Plate 1 has the A-A1 and B-B1 pairs
of holes that allow adjustment of
the rake wheel position.
We recommend fastening support 2
(see point 7) to the B-B1 pairs of
holes.
.
.
.
