MK32 User Manual V1.1

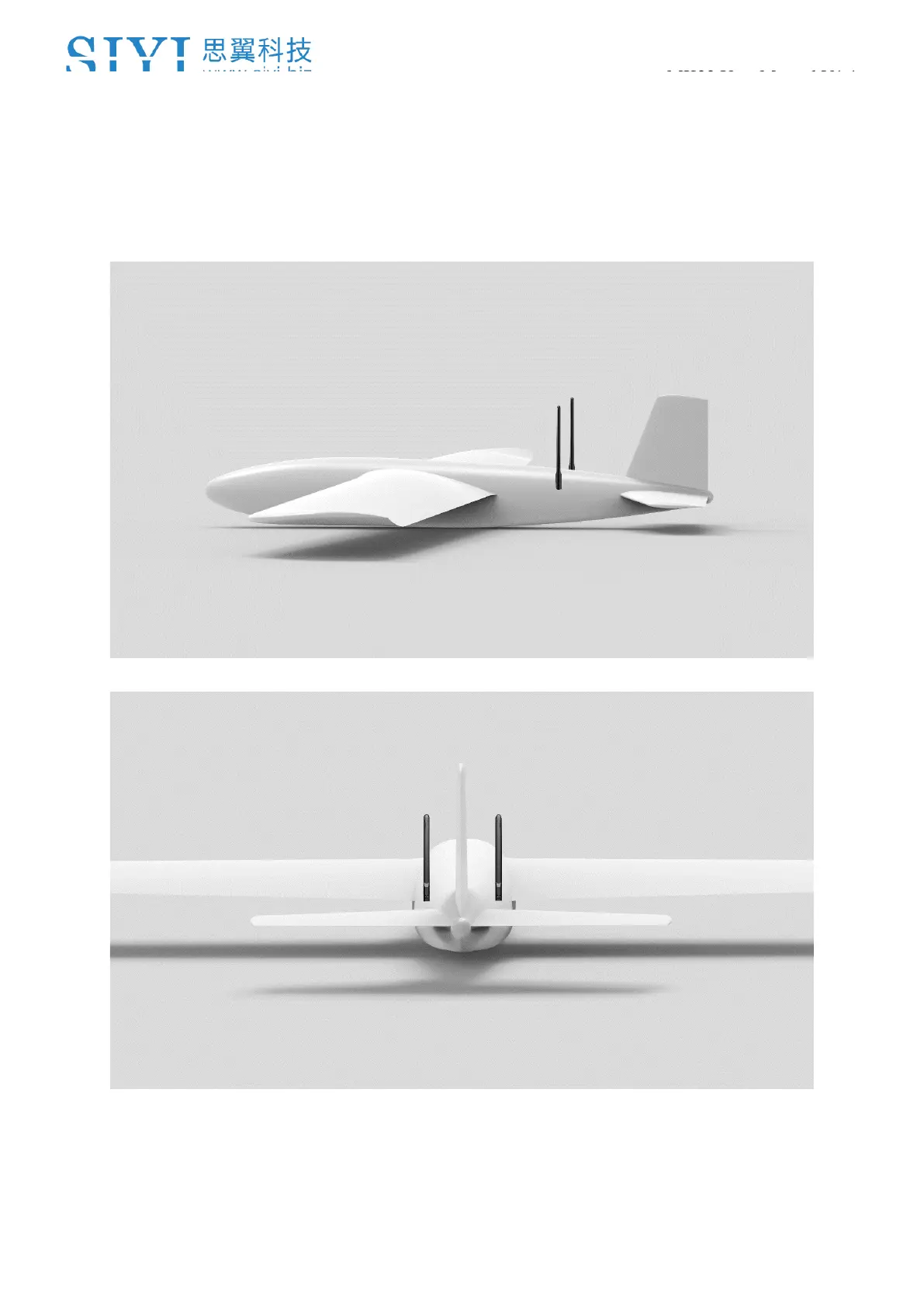

As shown in the figure below, for fixed-wing aircraft, the air unit antenna can be placed

vertically to the wings or vertical tail upwards and try to keep the flat surface of the

antenna facing the direction of the remote controller.
