MK32 User Manual V1.1

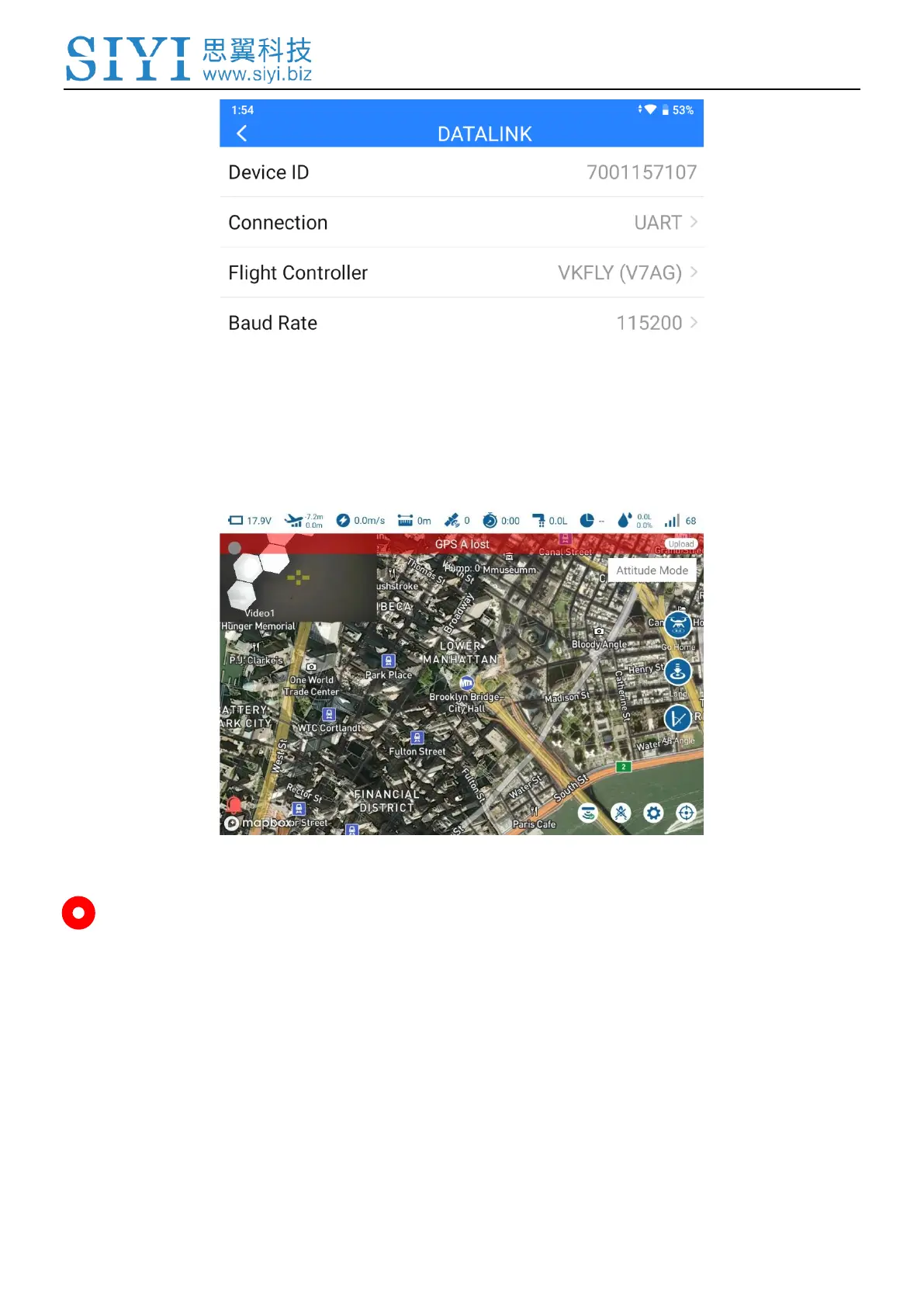

2. Run VK GCS, remote controller will communicate with the VK app

automatically and shows “device connected”. Datalink connection is

established.

Mark

SIYI links also support datalink connection to BOYING GCS through Bluetooth.
