SJRC F22S - AIRCRAFT; 2. ASSEMBLE THE PROPELLER

Pic.3 Pic.4
Pic.2
AIRCRAFT
7

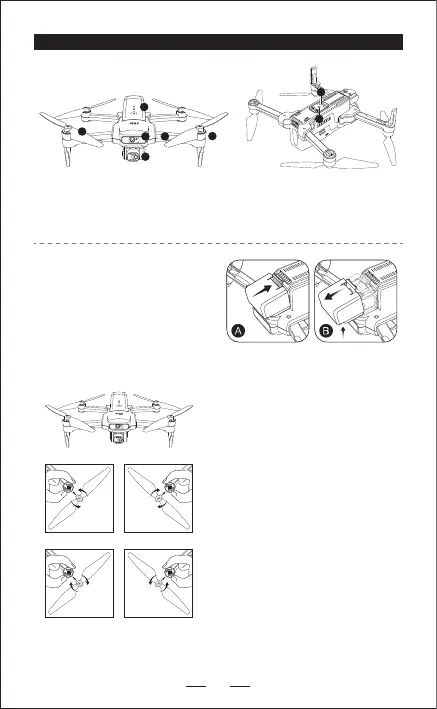

1. AIRCRAFT DIAGRAM
2. ASSEMBLE THE PROPELLER
A. Open the gimbal cover buckle.
B. Pull the gimbal cover up then
gently take it off.
1
2
3
5
46
A
B
BA
8
7
1. 2 axis mechanical gimbal with 4K electronic image stabilization camera
2. Propeller 3. Motor 4. LED indicator 5. Intelligent battery
6. Obstacle avoidance module 7. Night light 8. Optical flow sensor
ASSEMBLE THE PROPELLER A
Hold the motor, put the propeller in the
motor spindle, aim at the propeller clip
with the motor groove, press it down
and rotate it in counter-clockwise
direction.
ASSEMBLE THE PROPELLER B
Hold the motor, put the propeller in the
motor spindle, aim at the propeller clip
with the motor groove, press it down
and rotate it in clockwise direction.
TAKE THE PROPLLER A OUT:
Hold the motor, press the propeller down
and rotate it in clockwise direction.
TAKE THE PROPLLER B OUT:
Hold the motor, press the propeller
down and rotate it in counter-clockwise
direction.
