QuickCollect CMDT 391 / CMDT 391-Ex 4 - 3
User Manual – Revision B
• Tap the THRESHOLDS: Velocity field to navigate to the Velocity table.

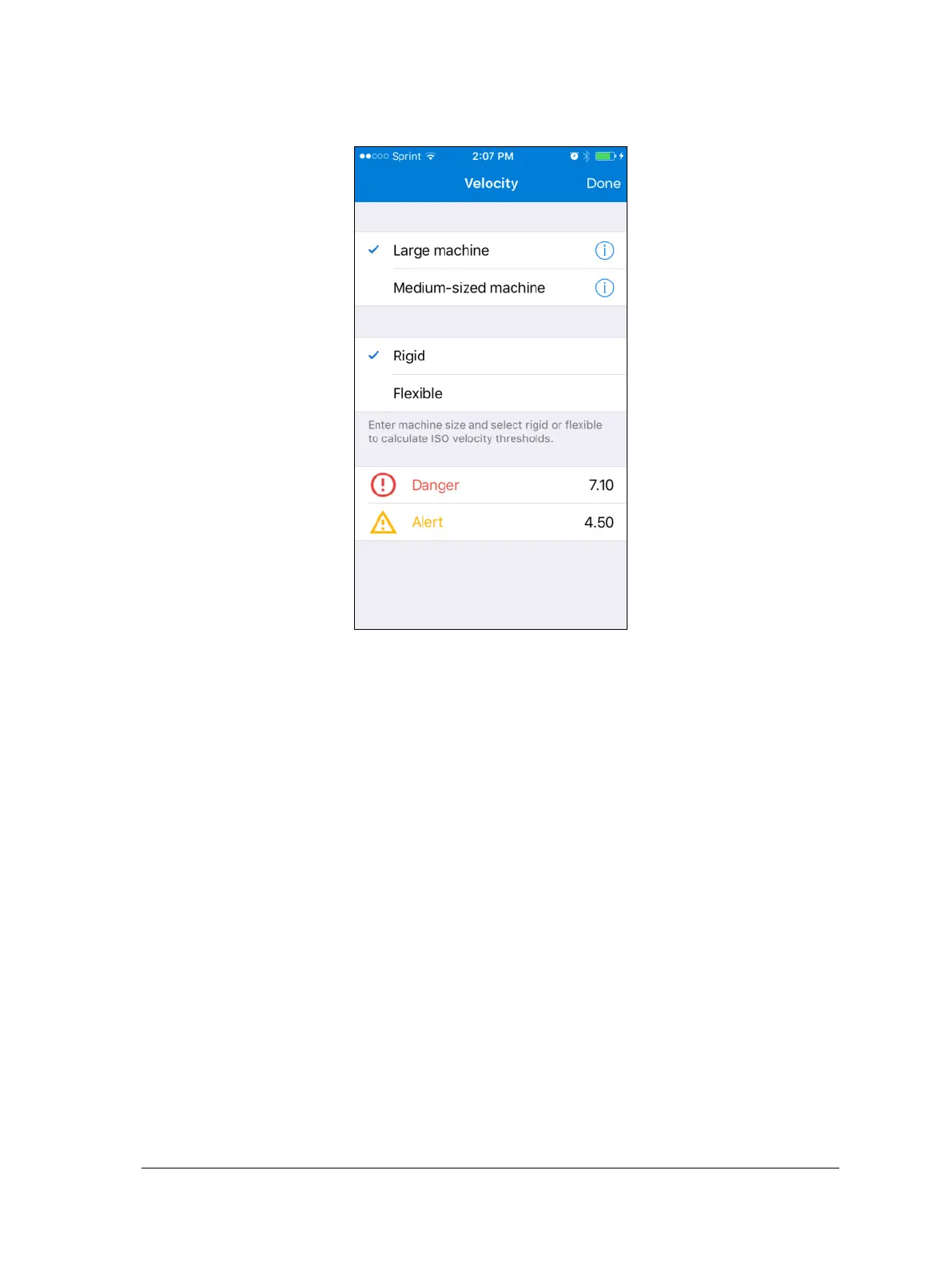

Figure 4 – 3.
Velocity table.
• Make selections and/or enter values for Velocity measurement thresholds:
Select whether the machine being measured is a Large machine or a Medium-
sized machine and whether it is Rigid or Flexible. The app will then
automatically calculate appropriate ISO velocity thresholds for the class of
machine.
➢ Tap either information icon to learn what constitutes a Large machine
as opposed to a Medium-sized machine.
Alternatively, tap within the Danger and/or the Alert field to bring up a
keyboard and enter a threshold value. User-defined levels may be entered.
• Tap Done to set all configurations and return to the Settings table.
