4 - 4 QuickCollect CMDT 391 / CMDT 391-Ex
User Manual – Revision B
• Tap the THRESHOLDS: Acceleration Enveloping field to navigate to the Acceleration
Enveloping table.

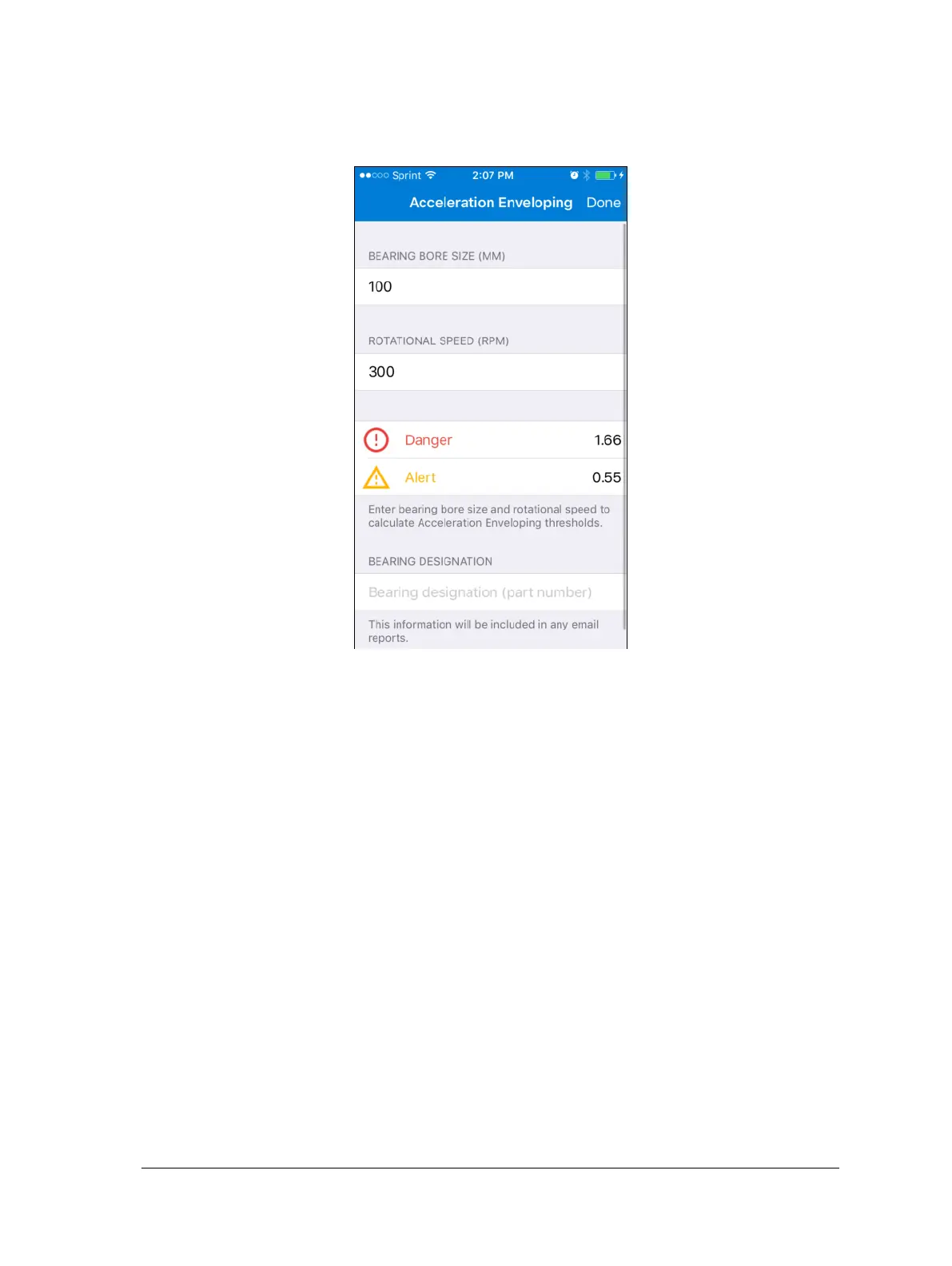

Figure 4 – 4.
Acceleration Enveloping table.
• Make selections and/or enter values for Acceleration Enveloping measurement
thresholds and other information:
Tap within the BEARING BORE SIZE text box to bring up a keyboard and enter
the bore size of the bearing in the units currently designated (mm or inches,
indicated next to field label).
Tap within the ROTATIONAL SPEED text box to bring up a keyboard and enter
the shaft rotational speed, in RPM, for the measurement point.
The app automatically calculates the acceleration enveloping thresholds for the
bearing at the shaft speed indicated.
Tap within the BEARING DESIGNATION text box to bring up a keyboard and
eter the earigs part uer for referee purposes.
• Tap Done to set all configurations and return to the Settings table.
