CONTROLS, INSTRUMENTS AND EQUIPMENT
15) Drive Belt Guard
Drive Belt Guard Removal
WARNING
NEVER operate engine:
– Without shields and belt guard secu rely insta lled.
– With hood and/or side panels opened or removed.
NEVER attemp t to make ad justments to moving parts while
engine is running.
NOTE: Belt guard is purposely made slightly oversize to maintain
tension on its pins and retainers preventing undue noise and vibra-
tion. It is important that this tension be maintained when reinstalling.
Remove tether cord cap from engine cut-off switch.
Open the LH side panel. See procedure in this section.

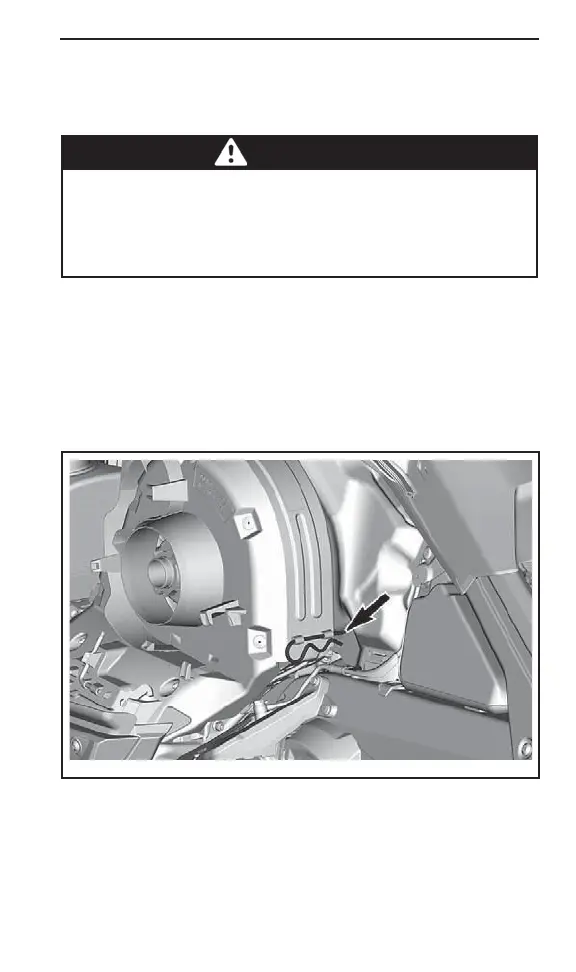

Remove retaining pin.
520001897-003_a
Lift rear portion of guard then release from front tab.
_________________
101
