MAINTENANCE PROCEDURES

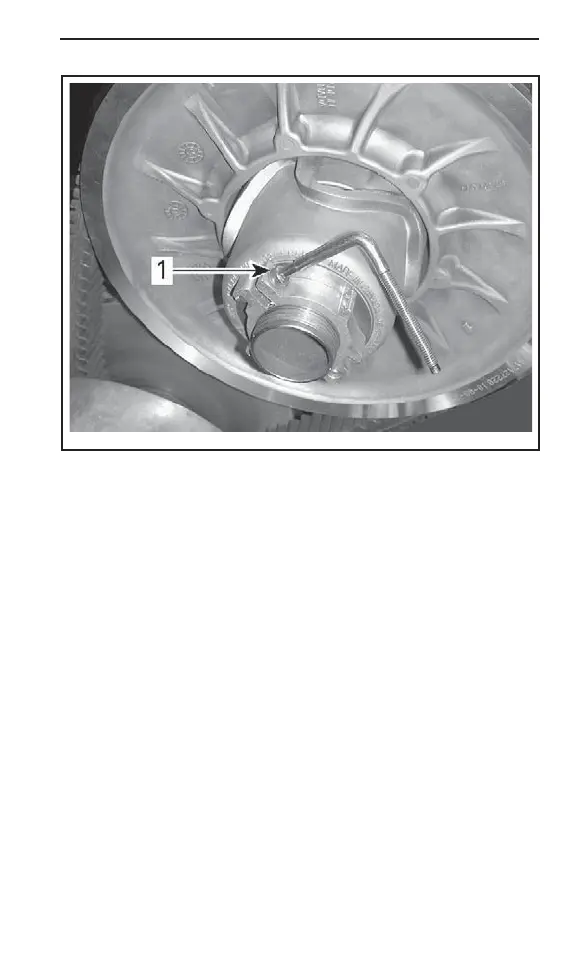

mmo2012-004-903_a
TYPICAL
1. Clamping bolt
6. Install drive belt guard.
7. Install side panel.
NOTE: These settings are correct as a preliminary adjustment for
most models. In some cases, when starting the engine, the vehicle
could creep, indicating that the drive belt is too tight.
If the vehicle c reeps, lower the drive belt height from the p reliminary
setting. Repeat procedure until creeping stops.
Reverse Activation
NOTE: The reverse may not activate if the belt is positioned too high
in the driven pulley. If reverse activation does not work properly, en-
sure the drive belt is properly adjusted. Adjust the drive belt lower in
the driven pulley if needed.
_________________
229
