A05F0EA
TYPICAL

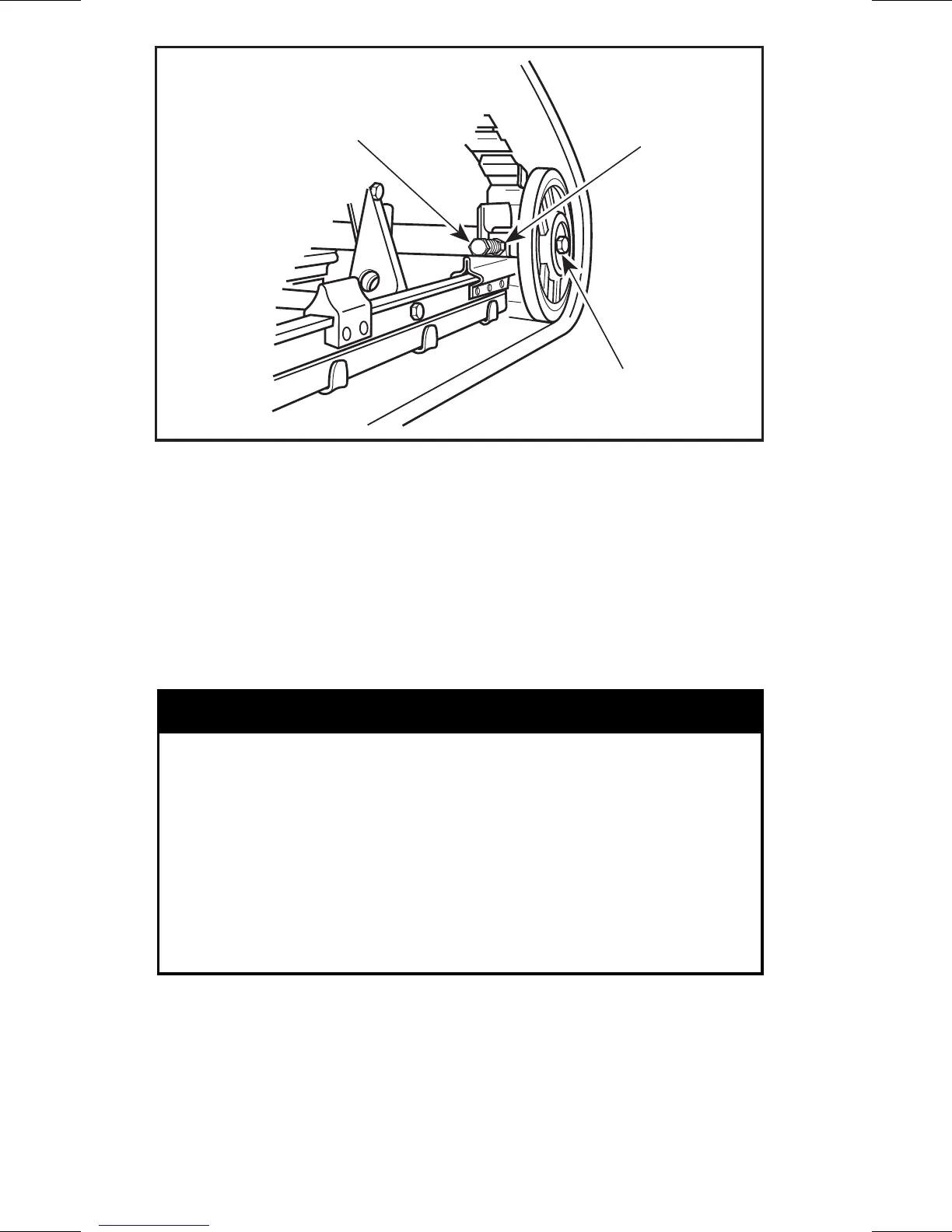

1. Adjustment screw
2. Loosen lock nut (on so equipped models)
3. Loosen screw
– Retighten retaining screws and lock nuts (on so equipped mod-
els).
– Check track alignment as described below.
Alignment
WARNING
Before checking track alignment, ensure that the track is free
of all particles which could be thrown out while track is rotat-
ing. Keep hands, tools, feet and clothing clear of track. Al-
ways lift the snowmobile on a wide-base stand with a rear de-
flector panel. Ensure no one is standing in close proximity to
the snowmobile, especially at the rear of the track. Never ro-
tate track at high speed.
Centrifugal force could cause debris, damaged or loose studs,
pieces of torn track, or an entire severed track to be violent-
ly thrown backwards out of the tunnel with tremendous force,
possibly resulting in the loss of a leg or other serious injury.
Start the engine and accelerate slightly so that track barely turns.
This must be done in a short period of time (15 to 20 seconds).
Check that the track is well centered; equal distance on both sides
between edges of track guides and slider shoes.
