Studs can also cause serious damage to your snowmobile if it is
not equipped with the tunnel protectors designed for your particular
model. Damage to the electrical wiring or perforation of the heat ex-
changers are potential hazards, that could cause the engine to over-
heat and be severely damaged.
WARNING
If tunnel protectors are excessively worn or not installed, the
gas tank could be punctured, causing a fire.
CAUTION: Ask your dealer for the appropriate tunnel protectors
model and kit number required for your snowmobile.
NOTE:
Consult the BRP limited warranty to find out what warranty
limitations are related to the use of studs.
Installation of Studs
To ensure safe and proper installation, BRP recommends to have the
studs installed by your dealer.
– Use only studs, mounting plates, and nuts sold by BRP.
– Never use studs that exceed the height of your snowmobile’s
trackprofilebymorethan9.5mm(3/8in).
2
A33A32A
3
1
4

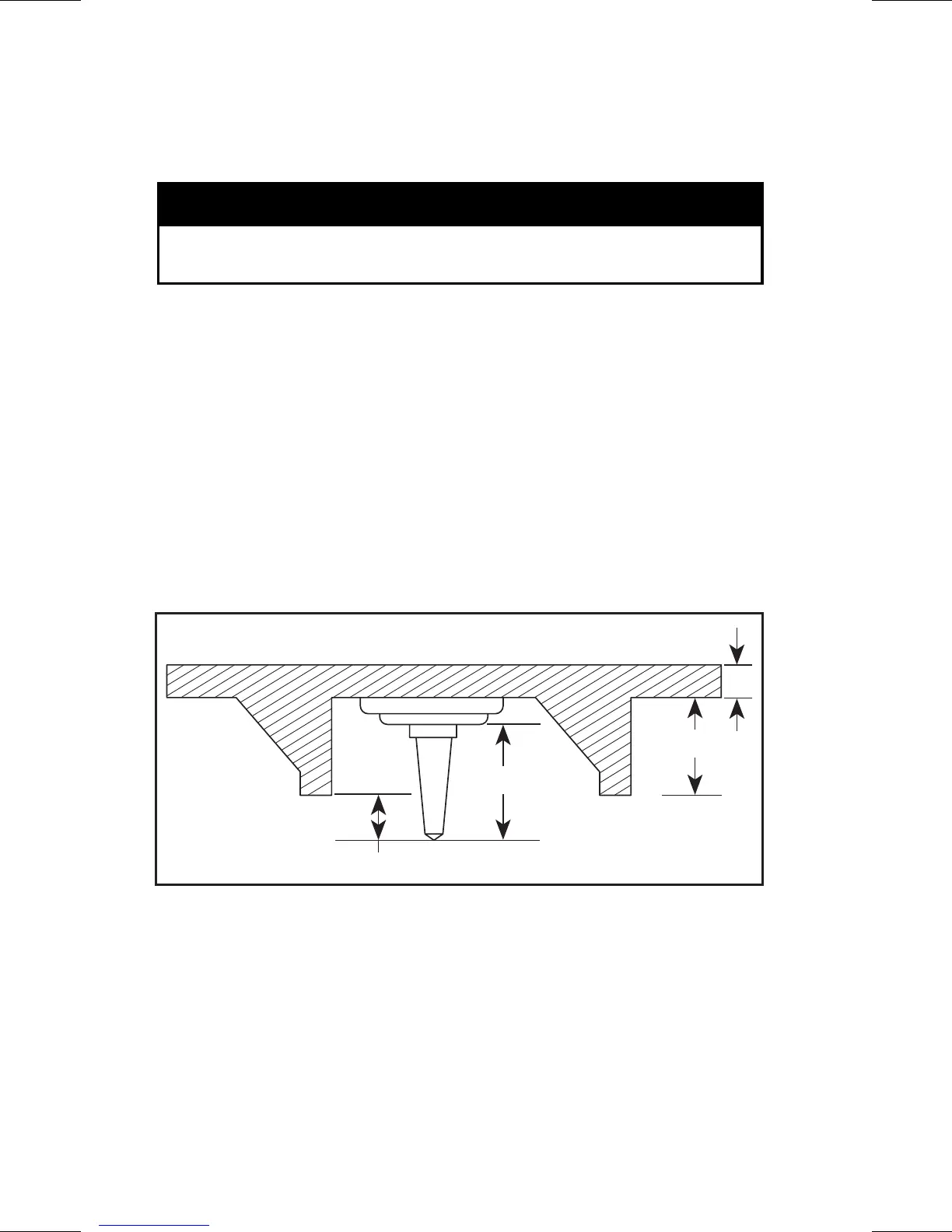

INSTALLATION OF STUDS
1. Stud size
2. Penetration range 6.4 to 9.5 mm (1/4 to 3/8 in)
3. Track lug height
4. Track belt thickness
34
