Ski-Doo SUMMIT 583 1997 - DRIVE BELT INFORMATION

Section 04 TRANSMISSION
Sub-Section 02 (DRIVE BELT)
04-02-1
DRIVE BELT 2
1997 APPLICATION CHART

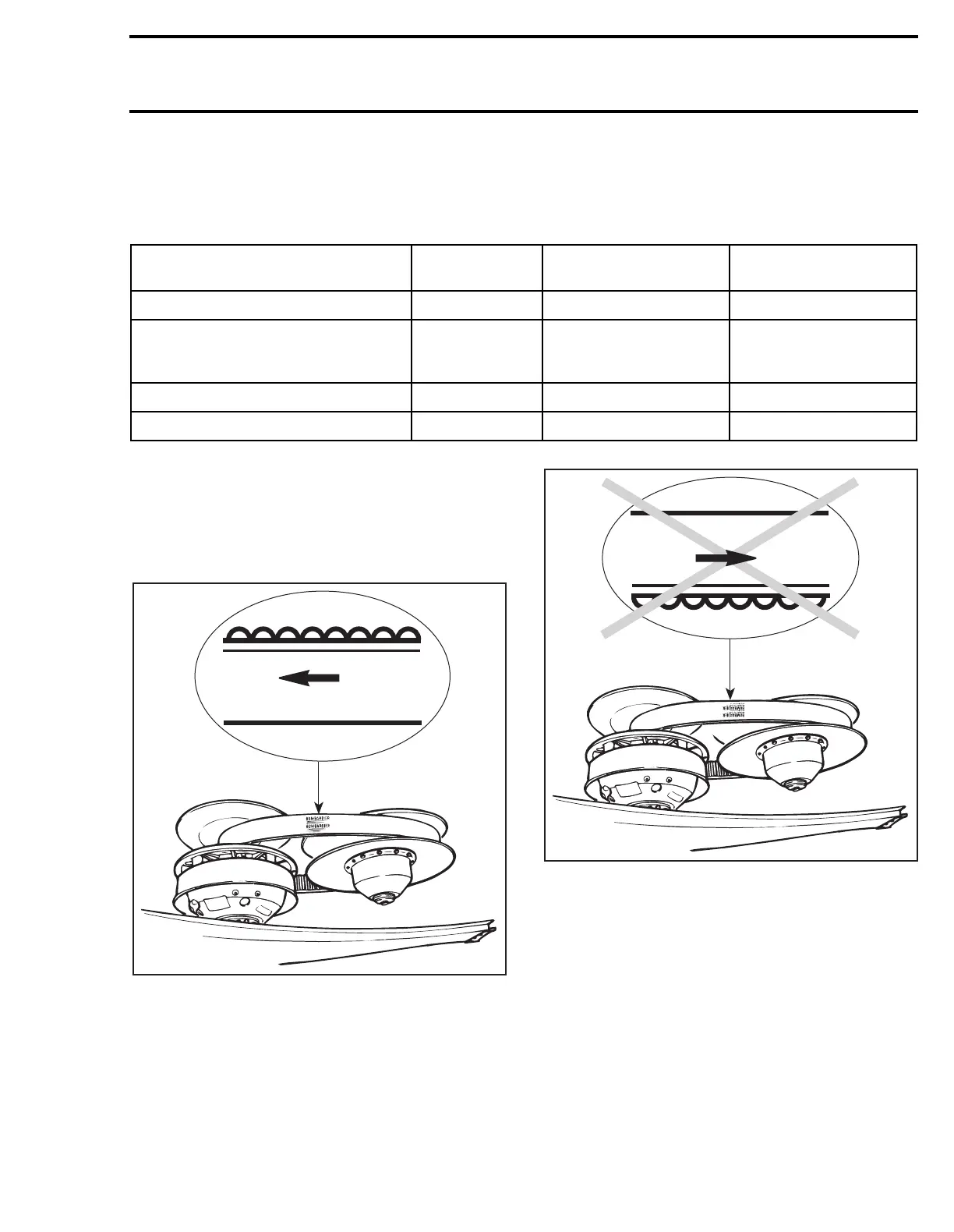

ROTATION DIRECTION
The maximum drive belt life span is obtained
when the drive belt is installed as shown. This will
ensure that correct direction of rotation is respect-
ed.
CORRECT
INCORRECT
NOTE:
For used drive belt, mark and rein-
stall in the same position.
MODEL
PART
NUMBER
WIDTH (NEW)
±
0.25 mm (.010 in)
MINIMUM WIDTH
(WEAR LIMIT)
SUMMIT 583/670 AND MX Z 670 415 0603 00 35 mm (1-3/8’’) 33 mm (1-19/64’’)
SUMMIT 500, GRAND TOURING
500/583, FORMULA 500/500DL/583/Z
AND MX Z 440/583
415 8607 00 34.7 mm (1-23/64’’) 32.3 mm (1-17/64’’)
SKANDIC WT/SWT/WT LC 414 6338 00 34.6 mm (1-23/64’’) 32 mm (1-1/4’’)
MX Z 440F 415 0606 00 34.7 mm (1-23/64’’) 32.3 mm (1-17/64’’)
