Section 04 TRANSMISSION
Sub-Section 08 (GEARBOX)
04-08-6

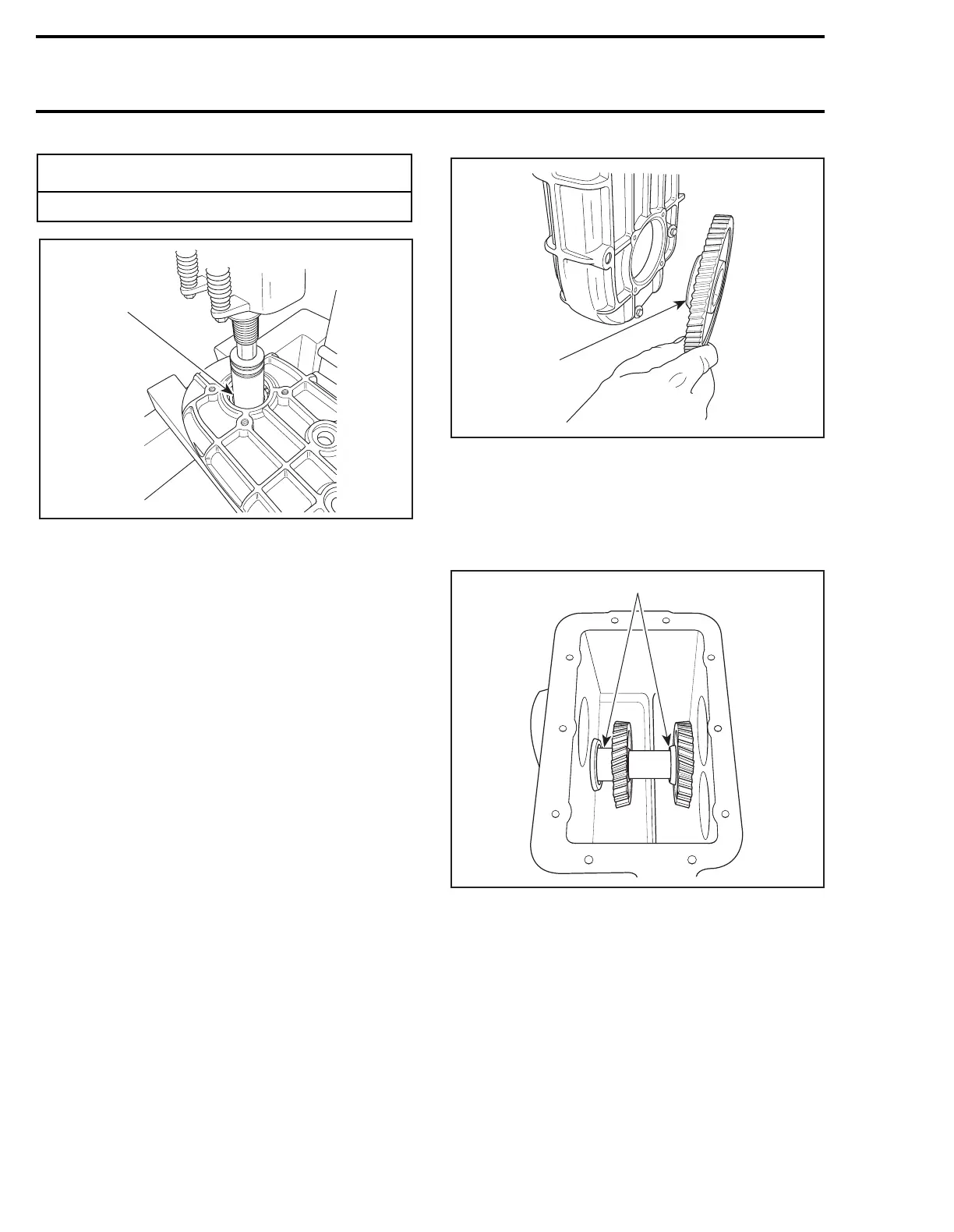

1. Push against gear shoulder
INSPECTION
Check bearing condition. There must be no discol-
oration, missing rollers or balls, broken cages, etc.
Check sprocket teeth.
ASSEMBLY
Reverse disassembly procedure, paying attention
to the following:
31, Output Shaft
Install output shaft with its hollow side (no
splines) on RH side.
25,29, Lower Gear and Intermediate
Gear
Install all gears with their shoulder towards RH
side.
1. Gear shoulder towards RH side
18,19,26,27,28, Reverse Shaft, LH Side
Bearing, Brake Shaft, Sleeve and Gear
Install brake shaft taking care that gear shoulders
face RH side.
1. Gear shoulders face RH side
Install reverse shaft, its smaller end first.
-
CAUTION
Do not push against inner bearing race.
A22D0JA
1
A22D0KA
1
A22D0LA
1
