Section 05 ELECTRICAL
Sub-Section 07 (TESTING PROCEDURE)
05-07-7

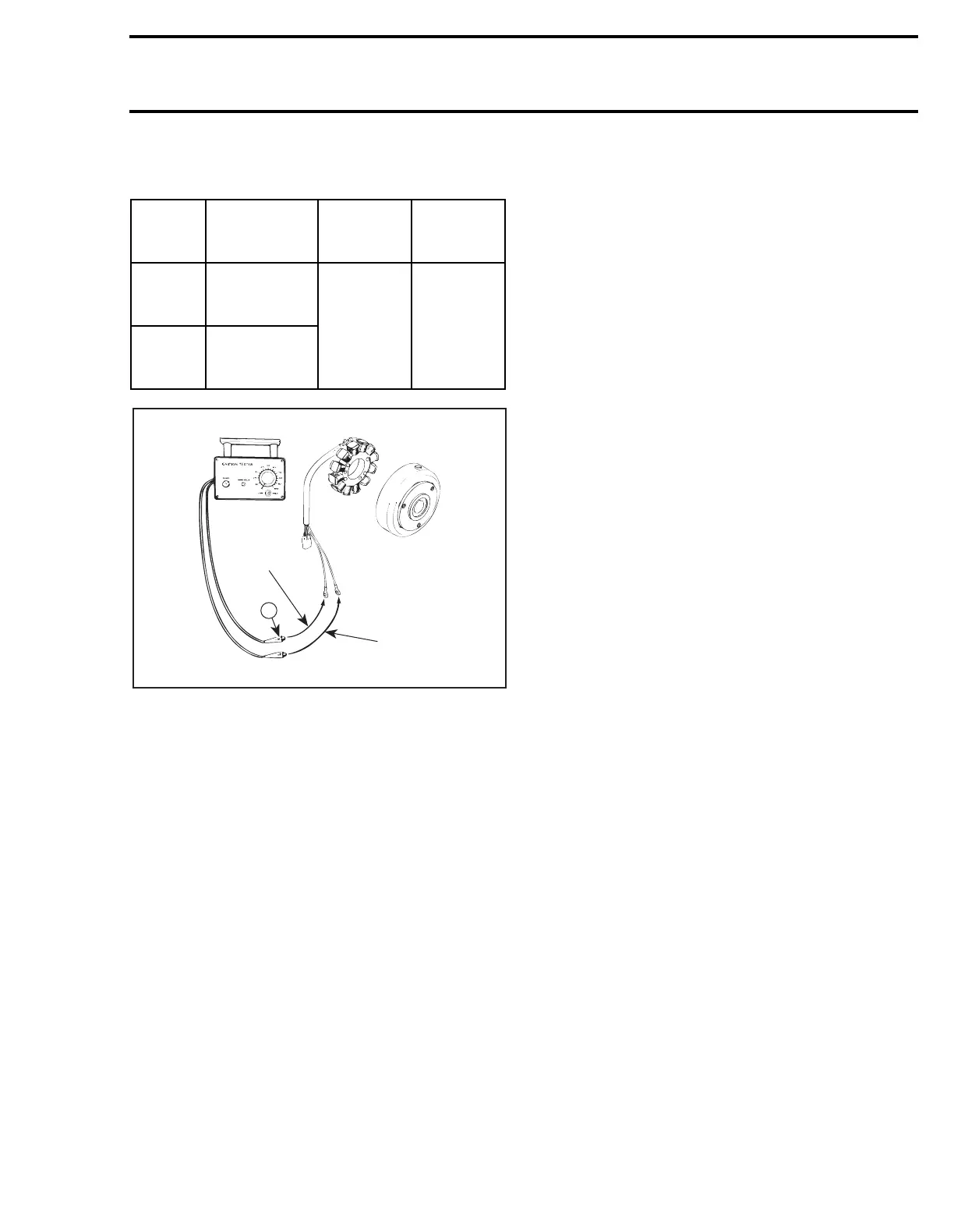

2. Connect tester wires then set switch and dial
as follows:
3. Crank engine and observe indicator.
4. Push reset button and repeat step 3 twice.
Results:
a.
Indicator lamp lights:
Lighting generator
coil output is up to specifications.
b.
Indicator lamp does not light:
Lighting gen-
erator coil is faulty.
Tester
wires
Component
wires
Tester
switch
position
Tester
dial
position
N
YELLOW
wire of
magneto harness
LOW 75
P
YELLOW
wire of
magneto harness
N
Yellow
A15E0VA
Yellow
