-7-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories
. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

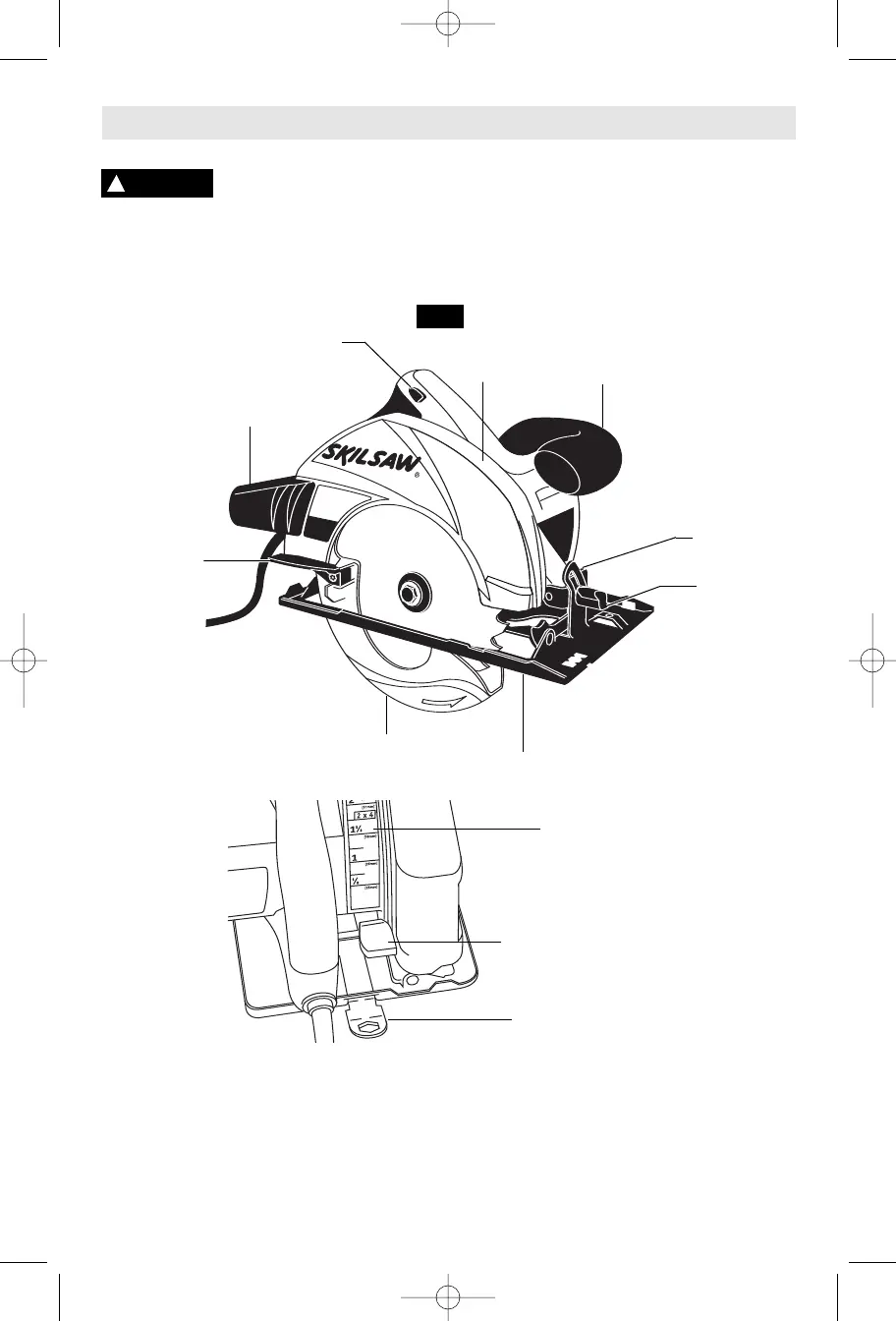

FIG. 1
LOWER
GUARD
FOOT
LOWER
GUARD LIFT
LEVER
AUXILIARY
HANDLE
BEVEL
ADJUSTMENT
KNOB
CALIBRATED
BEVEL
QUADRANT
SAFETY SWITCH
UPPER
GUARD
DUST PORT ADAPTER
(Not included,
available as accessory)
Maximum Capacities
Blade 7-1/4"
Blade arbor hole
Round
Depth of cut at 90° 2-7/16"
Depth of cut at 45
°
1-15/16"
Circular Saws
DEPTH ADJUSTMENT
LEVER
DEPTH
SCALE
BLADE WRENCH &
STORAGE AREA
NOTE: For tool specifications refer to the nameplate on your tool.
SM 2610925536 10-04 10/27/04 12:12 PM Page 7
