Skil 5995 - Assembly; Attaching the Blade; Vari-Torque Clutch

-11-
@@2:/9F
''!'
6@0<;;20A /.AA2?F =.08
3?<: A<<9 <? =9.02 A52
@D6A056;A529<0821<?<33=<@6A6<;/23<?2
:.86;4 .;F .@@2:/9F .17B@A:2;A@ <?
05.;46;4 .002@@<?62@. Such preventive
safety measures reduce the risk of starting
the tool accidentally.
1. Turn BLADE STUD with wrench provided
clockwise and remove BLADE STUD and
OUTER WASHER (Fig. 2). If the shaft moves
while attempting to loosen the blade stud
press the lock button (Fig. 1).
2. Retract the lower guard all the way up into
the upper guard. While retracting the lower
guard, check operation and condition of the
LOWER GUARD SPRING.
3. Make sure the saw teeth and arrow on the
blade point in the same direction as the arrow
on the lower guard.
4. Slide blade through slot in the foot and
mount it against the INNER WASHER on the
shaft. Be sure the large diameter of the OUTER
washer lays flush against the blade.
5. Reinstall OUTER WASHER and tighten
BLADE STUD finger tight. The face of outer
washer has marks around it that will help you
properly adjust the blade stud. To lock shaft
hold the saw securely by the upper guard with
blade teeth imbedded in scrap wood and
TIGHTEN BLADE STUD COUNTER-
CLOCKWISE ONE MARK ON BLADE
WASHER WITH THE WRENCH PROVIDED.
Do not use wrenches with longer handles,
since it may lead to over tightening of the blade
stud.
)%'"%$(('
This clutching action is provided by the friction
of the OUTER WASHER against the BLADE
and permits the blade shaft to turn when the
blade encounters excessive resistance. When
the BLADE STUD is properly tightened (as
described in No. 5 of Attaching The Blade), the
blade will slip when it encounters ex cessive
resistance, thus reducing saw’s tendency to
KICKBACK.
One setting may not be sufficient for cutting all
materials. If ex cessive blade slippage occurs,
tighten the blade stud 1/2 mark more.
OVERTIGHTENING THE BLADE STUD
NULLIFIES THE EFFECTIVE-NESS OF THE
CLUTCH.
!
WARNING
LOWER
GUARD
BLADE SHAFT
INNER WASHER
Large Diameter
Faces Blade
OUTER WASHER
Large Diameter
Faces Blade
BLADE STUD
BLADE
WRENCH
OUTER WASHER
MARK
TIGHTEN
LOOSEN
LOWER
GUARD
SPRING
UPPER
GUARD

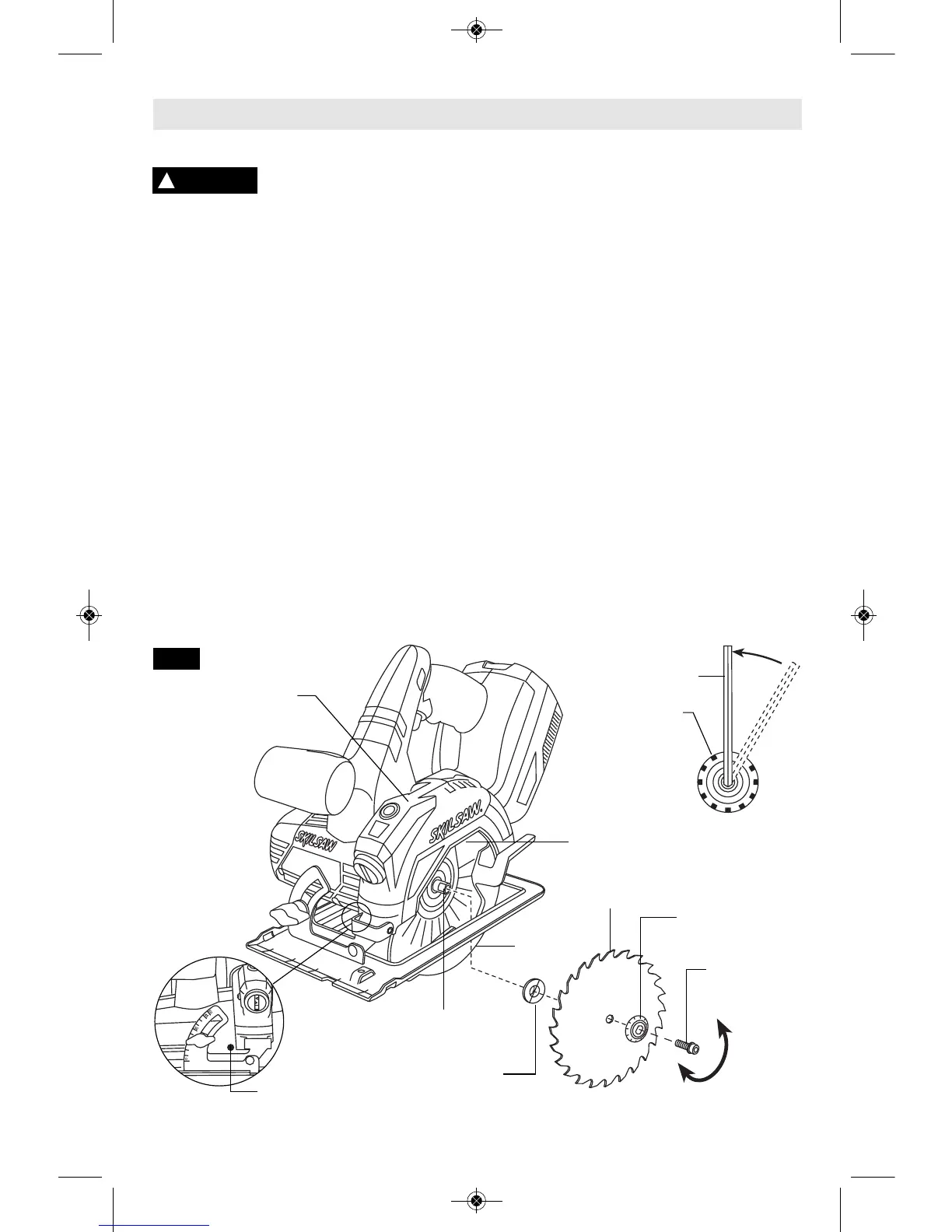

FIG. 2
LOCK BUTTON





