Fuse arrangement in the dashboard

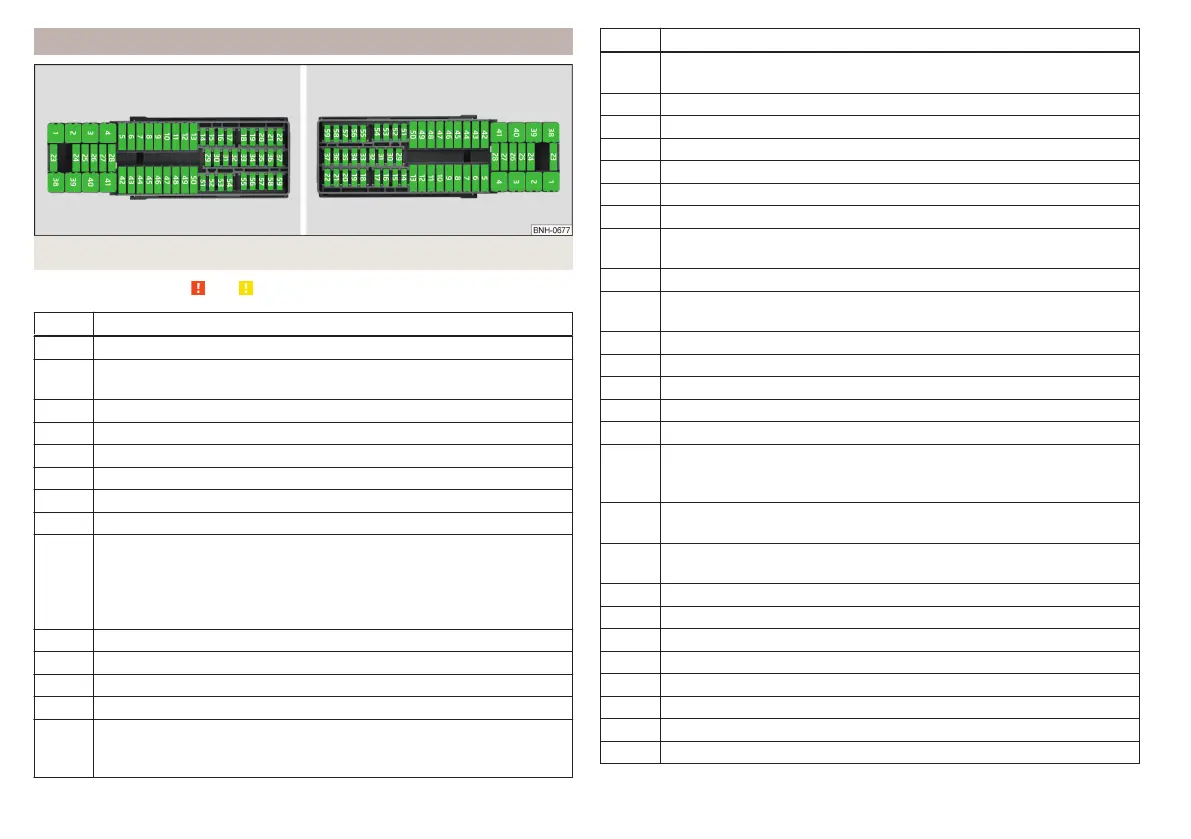

Fig. 186 Fuses: LHD / RHD
Read and observe
and on page 153 first.
No. Power consumer
1 Light - left
2
Central locking, windscreen and rear window washer system (only
with KESSY or heated windscreen)
3 Ignition
4 Light - right
5 Power windows - driver
6 Interior lighting
7 Horn
8 Towing hitch - left light
9
Operating lever beneath the steering wheel, engine control unit (on-
ly without KESSY), automatic gearbox (only without KESSY), auto-
matic gearbox (only without KESSY), ESC (only without KESSY), tow-
ing equipment (only without KESSY), power steering (only without
KESSY)
10 Power windows - rear left
11 Headlight cleaning system
12 Infotainment display
13 Voltage stabiliser for taxi vehicles
14
Operating lever under the steering wheel, light switch, ignition key
removal lock (automatic gearbox), headlight flasher, SmartGate, rain
sensor, rear view camera

No. Power consumer
15
Air conditioning, automatic transmission, diagnostic connector, heat-
ed windscreen
16 Instrument cluster, emergency call
17 Anti-theft alarm, horn
18 Not assigned
19 Not assigned
20 Not assigned
21 Not assigned
22
Windscreen and rear window washer system (without KESSY or
without heated windscreen)
23 Heated front seats
24
Blower fan for air conditioning system, heating, air conditioning,
heating
25 Not assigned
26 Heated front seats
27 Rear window wiper
28 Not assigned
29 airbag
30
Electric windows, reverse light switches, air conditioning system,
Park Assist, exterior mirror settings, power feed for centre button
strip, power feed for side button strip, interior mirror
31
Fuel pump, radiator fan, cruise control, windscreen and rear window
washer, light switch
32
Diagnostic connector, headlight levelling, control lever under the
steering wheel, interior lighting, voltage stabiliser for taxi vehicles
33 Engine starting, clutch pedal switch
34 Heated windscreen washer jets
35 Not assigned
36 Not assigned
37 Radar
38 Not assigned
39 Electrical auxiliary heating system
40 Not assigned

154
Do-it-yourself
