Coolant temperature gauge

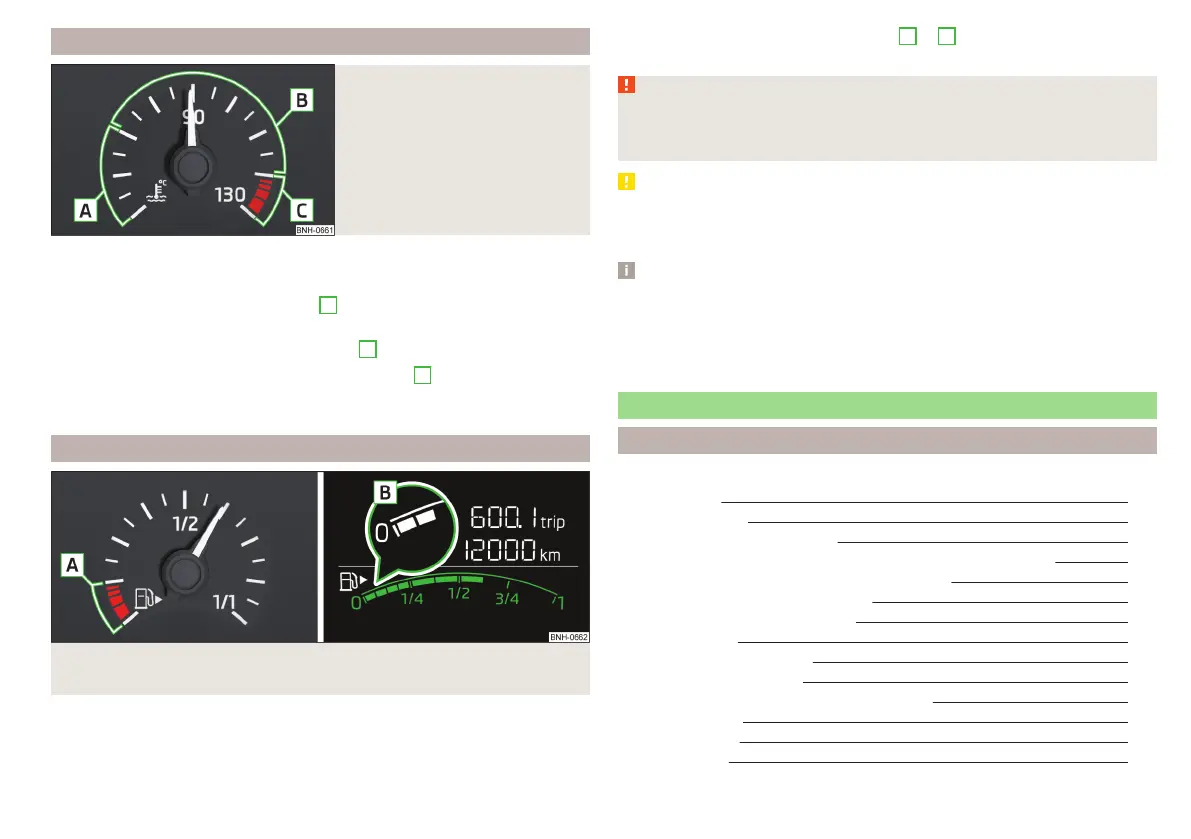

Fig. 19
Coolant temperature gauge
Applies to cars with the instrument cluster - Version 1 » Fig. 17 on page 28.
The display » Fig. 19 only works if the ignition is switched on.
Cold range - the pointer is in the range
A
, the engine has not yet reached its
operating temperature. Avoid high speeds and high engine loads.
Operating range - the pointer is in the range
B
.
High temperature range - the pointer is in the range
C
. The coolant tempera-
ture is too high. The warning light
illuminates in the instrument cluster
» page 35.
Fuel gauge
Fig. 20 Fuel gauge: in the instrument cluster / the display of the instru-
ment cluster
The display » Fig. 20 only works if the ignition is switched on.
The fuel tank has a capacity of about 55 litres.
If the fuel level reaches the reserve level
A
or
B
, the warning light illumi-
nates in the instrument cluster» page 33.
WARNING
For the vehicle systems to function correctly, and thus for safe driving,
there must be sufficient fuel in the tank. Never drain the fuel tank com-
pletely – risk of accident!
CAUTION
Never drive until the fuel tank is completely empty! Irregular supply of fuel can
cause misfiring, which can result in damage to parts of the engine and the ex-
haust system.
Note
■
After filling up, it can occur that during dynamic driving (e.g. numerous
curves, braking, driving downhill and climbing a steep hill) the fuel gauge indi-
cates a fraction less.
■
The arrow
next to the symbol
within the fuel gauge displays the installa-
tion location of the fuel filler on the right side of the vehicle.
Warning lights
Introduction
This chapter contains information on the following subjects:
Handbrake
30
Braking system 30
Front seat belt warning light 30
Power steering / steering lock (engine start push-button) 31
Stability control (ESC) / Traction control (TCS) 31
Traction control (TCS) deactivated 32
Anti-lock braking system (ABS) 32
Rear fog light 32
Emission control system 32
Preheating unit (diesel) 32
Engine performance check (petrol engine) 32
Airbag system 32
Tyre pressure 33
Fuel reserve 33
