Removing
›
On both sides of the boot lid unhook the straps
A
in direction of arrow
1
» Fig. 91.
›
Hold the raised cover and press on the two sides on the underside of the
cover in the area of the recess
C
.
›
Remove the cover in the direction of the arrow
2
.
Installing
›
Position the fixtures
B
on the cover over the studs
C
» Fig. 91.
›
On both sides, press on the top of the cover in the area of the studs
C
. The
fixture
B
must lock into place on the studs
C
on both sides of the luggage
compartment.
›
Hook in the straps
A
on both sides of the boot lid.
WARNING
Do not place any objects on the cover during the trip - risk of injury if brak-
ing suddenly or colliding!
CAUTION
■
Observe the following instructions to avoid canting and the subsequent
damage to the cover or the side trim.
■
The cover must be inserted properly and the load must not exceed the
height of the cover.
■
The cover must not be jammed in the surrounding seal of the luggage com-
partment lid when it is in the raised position.
■
There must be no object in the gap between the cover in the raise position
and the rear backrest.

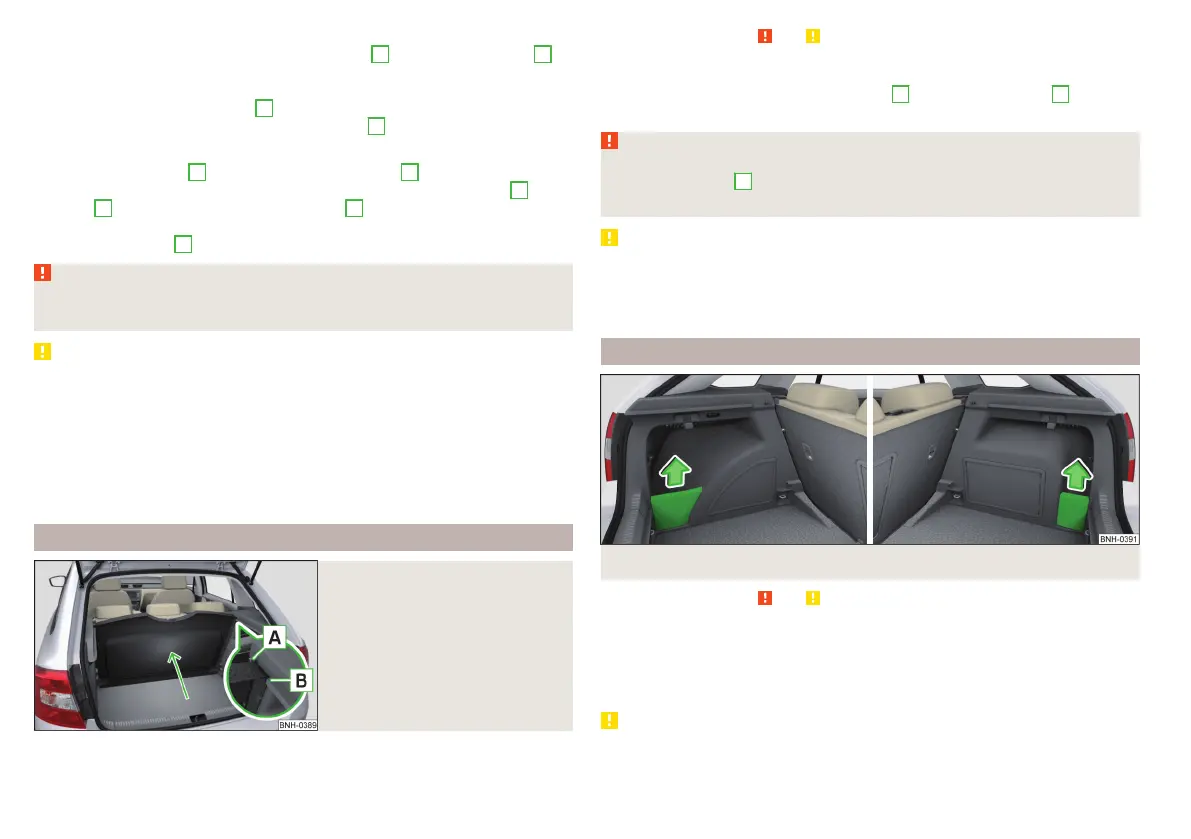

“Parking position” of the boot cover
Fig. 92
Luggage compartment cover
stowed behind the rear seats
Read and observe and on page 76 first.
The boot cover can be stowed behind the rear seat backrests.
›
Slide the dismantled cover between bolt
A
and contact surface
B
of the
side panel » Fig. 92.
WARNING
When adjusting the “parking position”, the boot cover must not be located
between the bolt
A
and the rear seat backrest - risk of damaging the rear
seat backrest and the boot cover.
CAUTION
■
Before setting the “parking position” of the luggage compartment cover, the
variable loading floor must be put in the upper or lower position» page 80.
■
If the luggage compartment cover is in the “parking position”, the “parking
position” of the variable loading floor cannot be set » page 81.
Storage compartment in the boot
Fig. 93 Remove the tray cover on the left / right
Read and observe
and on page 76 first.
The storage compartments are designed for storing small objects of up to
1.5 kg. in weight in total.
›
To remove, grasp the top part of the cover and remove in the direction of the
arrow » Fig. 93.
CAUTION
When handling the storage compartment cover, ensure that it and/or the lug-
gage compartment trim is not damaged.
78
