Fuses and light bulbs
Fuses
Introduction

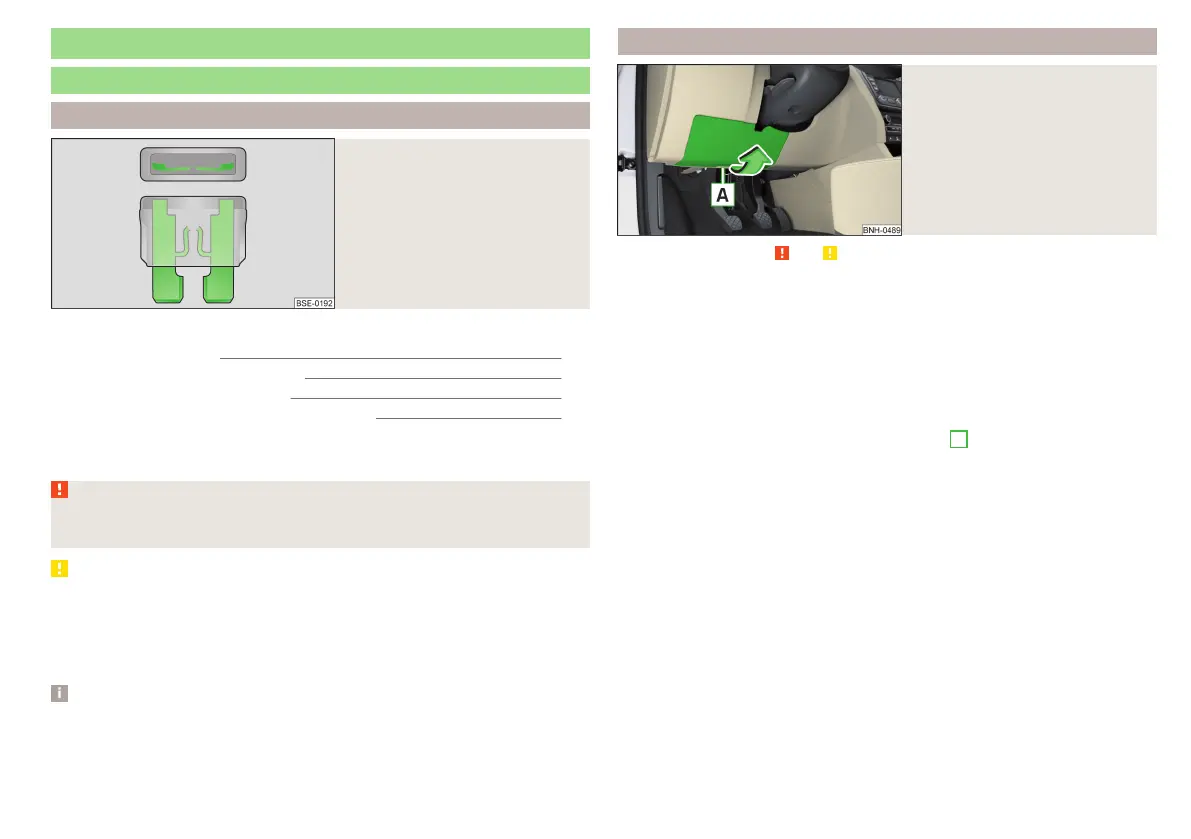

Fig. 184
Blown fuse
This chapter contains information on the following subjects:
Fuses in the dashboard 153
Fuse arrangement in the dashboard 154
Fuses in the engine compartment 155
Fuse arrangement in the engine compartment 156
Individual electrical circuits are protected by fuses. A blown fuse is recognisa-
ble from the melted-through metal strip » Fig. 184.
WARNING
Always read and observe the warning notes before completing any work in
the engine compartment » page 128, Engine compartment.
CAUTION
■
Replace the faulty fuse with a new one of the same amperage.
■
If a newly inserted fuse again blows after a short time, then seek assistance
from a specialist garage.
■
“Do not repair” the fuses and do not replace them with stronger fuses - dan-
ger of fire and damage to another electrical system.
Note
■
We recommend always carrying replacement fuses in the vehicle.
■
There can be several power-consuming devices for one fuse. Multiple fuses
may exist for a single power-consuming device.
Fuses in the dashboard
Fig. 185
Remove the fuse box cover.
Read and observe and on page 153 first.
The fuses are located on the bottom of the dash panel behind a cover.
Replacing fuses
›
Remove the ignition key, turn off the lights and all electrical consumers.
›
Remove the cover of the fuse box » Fig. 185 in the direction of the arrow.
›
Remove the plastic clip from the holder in the fuse box cover.
›
Use the clip to pull the fuse out, then insert a new fuse.
›
Replace the bracket at the original position.
›
Insert the top edge of the cover into the dash panel first.
›
Push the lower edge of the cover in the region
A
.
153
Fuses and light bulbs
