BF 50 Wall Fans
40 Technical User Guide
3.11 Mounting of accessories

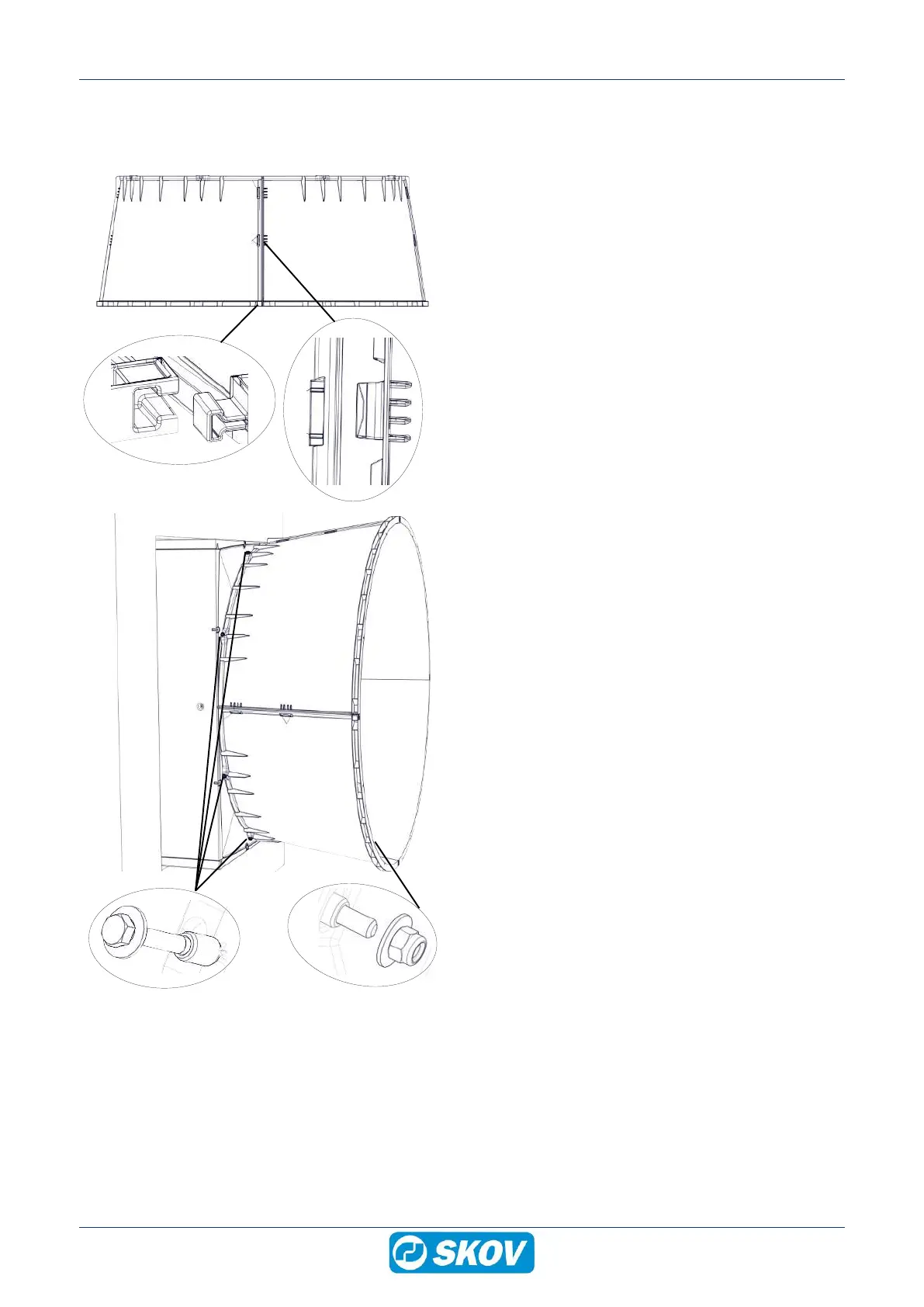

3.11.1 Cone
Consists of 4 identical parts.
Ensure the tongue and groove at the base are in line.
Click the sides together.
Hang the cone on the wall fan.
Mount the assembled cone on the wall fan using the en-
closed screws, female connectors and self-locking nuts.
