4.1.24 BF 50 EL ON/OFF 3x400 V (435388)

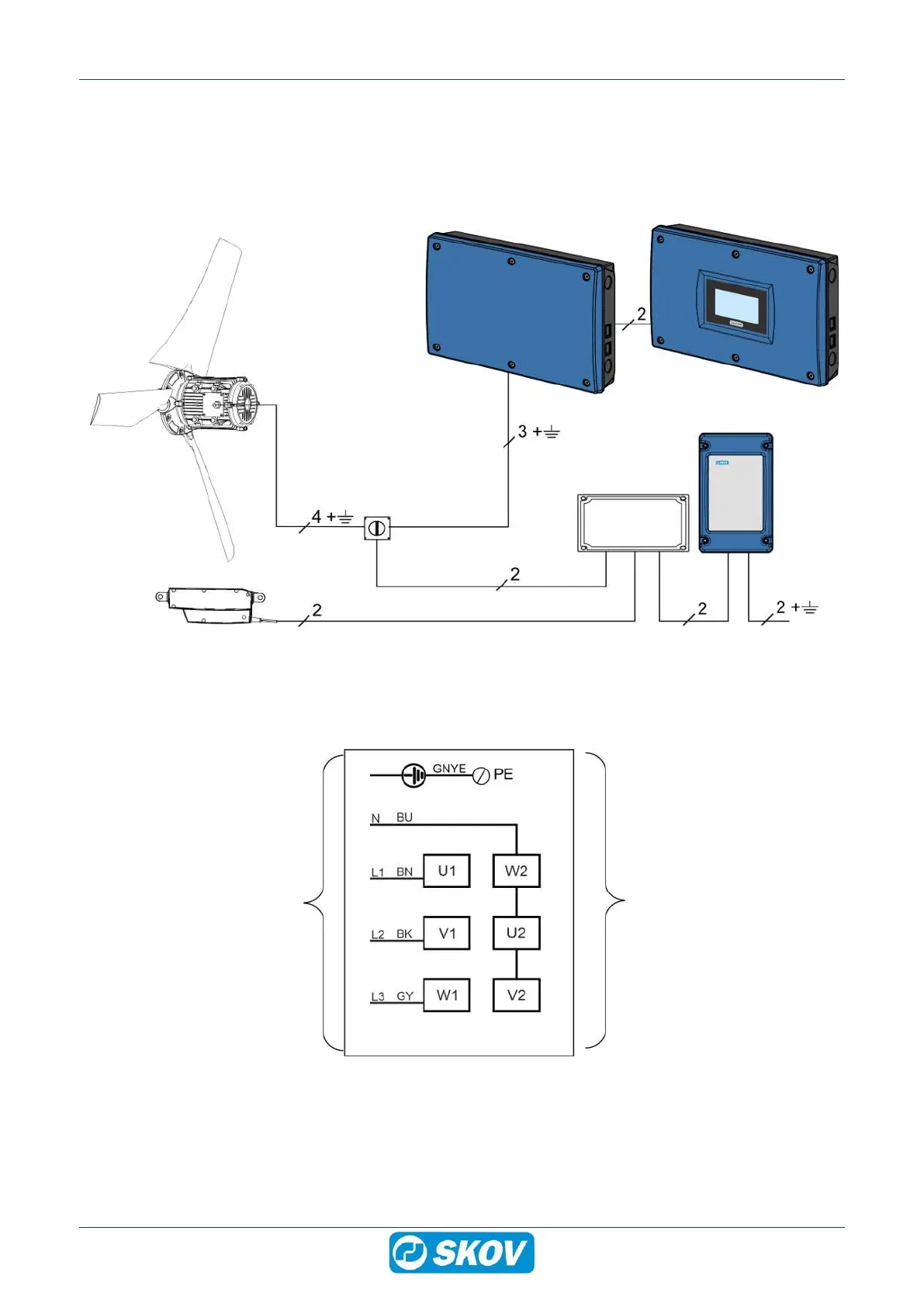

4.1.24.1 Cable plan
3x400 V
ON/OFF fan
ON/OFF actuator
Power supply
isolator
Wiring box
Controller
Power supply
ON/OFF actuator
control box
1x230 V
4.1.24.2 Terminals in ON/OFF 3x400 V fan
External
Internal
